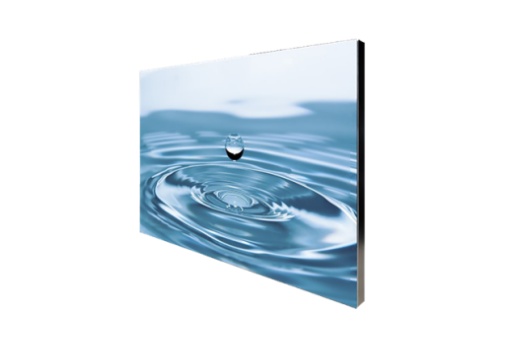

| Model | MW7730‑MI‑H2 |
| Module | |
| Pixel Pitch | P3.0 |
| Module Resolution (W × H) | 64 × 64 |
| Module Dimensions (mm) | 192 × 192 |
| Signal Source Interface | HUB75 |
| Processing Image | |
| Single Pixel Brightness Correction | Support |
| Single Pixel Color Correction | Support |
| Brightness (nits) | 450 |
| Color Temperature (K) | 2000 to 9300 adjustable |
| Viewing Angle (H/V) | 140°/140° |
| Center Distance Deviation of LED | < 3% |
| Brightness Uniformity | ≥ 97% |
| Color Uniformity (Cx, Cy) | ±0.003 |
| Contrast Ratio | ≥ 5000:1 |
| Processing performance | |
| Pixel Density (pitch/m²) | 111111 |
| Surface Evenness (mm) | ≤ 0.2 |
| Grayscale | 12 bit |
| Scanning Mode | 32 S |
| Drive Mode | Constant current driving |
| Refresh Rate (Hz) | 3840 |
| Electrical | |
| Power Supply | DC 4.5 V |
| Average Power Consumption (W/m²) | 200 |
| Max. Power Consumption (W/m²) | 600 |
| General | |
| Ingress Protection | IP30 |
| Weight (kg/pcs) | 0.45±0.1 |
| Operating Temperature | ‑10°C to 45°C |
| Operating Humidity | 10% to 80% RH, non‑condensing |
| Storage Temperature | ‑20°C to 55°C |
| Storage Humidity | 10% to 85% RH, non‑condensing |
| LED Lifetime (h) | 50000 |
