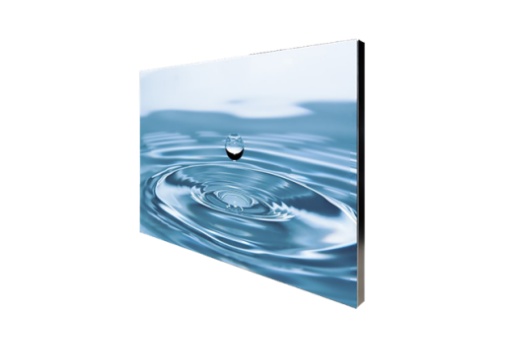

MW7720-MI-H1
P2.0 Indoor Fine Pixel LED Display
• The R, G, B dies are encapsulated together to form a single pixel, delivering excellent color mixing effect and uniformity.
• Integrates lamp board and drive board for even current distribution, low power consumption, and fast heat dissipation.
• High refresh rate driver IC presents delicate and smooth images.
• High brightness and high reliability.
• High contrast with full black lamp.
• Long lifetime.
• Ultra wide viewing angle ensures satisfactory viewing experience from diversified angles.
Specification
Download
How to buy
Model MW7720‑MI‑H1
Module
Pixel Pitch P2.0
Module Resolution (W × H) 160 × 80
Module Dimensions (mm) 320 × 160
Signal Source Interface HUB75
Processing Image
Single Pixel Brightness Correction Support
Single Pixel Color Correction Support
Brightness (nits) 450
Color Temperature (K) 2000 to 9300 adjustable
Viewing Angle (H/V) 140°/140°
Center Distance Deviation of LED < 3%
Brightness Uniformity ≥ 97%
Color Uniformity (Cx, Cy) ±0.003
Contrast Ratio ≥ 5000:1
Processing performance
Pixel Density (pitch/m²) 250000
Surface Evenness (mm) ≤ 0.2
Grayscale 12 bit
Scanning Mode 40 S
Drive Mode Constant current driving
Refresh Rate (Hz) 3840
Electrical
Power Supply DC 4.5 V
Average Power Consumption (W/m²) 200
Max. Power Consumption (W/m²) 600
General
Ingress Protection IP30
Weight (kg/pcs) 0.45±0.1
Operating Temperature ‑10°C to 45°C
Operating Humidity 10% to 80% RH, non‑condensing
Storage Temperature ‑20°C to 55°C
Storage Humidity 10% to 85% RH, non‑condensing
LED Lifetime (h) 50000
