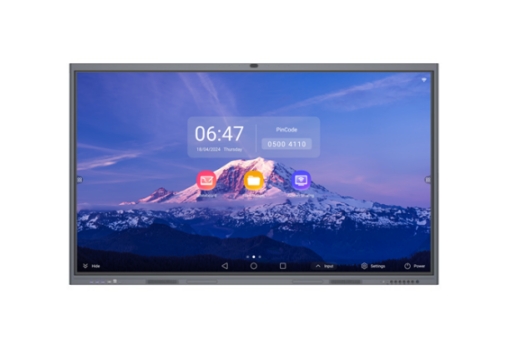

MW3586-U-XE - Uniview - Leader of AIoT Solution

Model	MW3586UXE	MW3586UXE
Panel	Panel	Panel
Panel Size	86"	86"
Resolution	3840 × 2160	3840 × 2160
Brightness (cd/m²)	400	400
Contrast Ratio	1200:1	1200:1
Response Time (ms)	8	8
Color Support	1.07B	1.07B
Viewing Angle (H/V)	178°/178°	178°/178°
Refresh rate（Hz）	60	60
Color gamut	72%	72%
Lifespan	50000H	50000H
Surface Hardness	7H	7H
Haze Value	25%	25%
Display Size（mm）	1895.04 x 1065.96	1895.04 x 1065.96
Pixel Pitch (H × V) (mm)	0.49 x 0.49	0.49 x 0.49
System	System	System
RAM	DDR4, 8GB	DDR4, 8GB
ROM	eMMC, 128GB	eMMC, 128GB
CPU	RockChip RK3588，quadcore A76 + quad-core A55,	RockChip RK3588，quadcore A76 + quad-core A55,
CPU Frequency	2.4GHz	2.4GHz
Operation System	Android 13.0	Android 13.0
Touch	Touch	Touch
Touch Control	Supports 32point touch, 20point write (40-point touch in Windows system）	Supports 32point touch, 20point write (40-point touch in Windows system）
Recognizable Object	5 points, 3mm	5 points, 3mm
Touch Precision (mm)	1	1
Glass	4mm tempered glass, 7H, antiglare	4mm tempered glass, 7H, antiglare
Touch Response Time (ms)	≤5	≤5
Touch technology	Infrared touch	Infrared touch
Interface	Interface	Interface
Video Input	3 x HDMI IN 1 x DP IN 1 x VGA 1 x YPbPr 2 x AV analog video input	3 x HDMI IN 1 x DP IN 1 x VGA 1 x YPbPr 2 x AV analog video input
Video Output	1 x HDMI OUT 1 x DP OUT 1 x AV analog video output	1 x HDMI OUT 1 x DP OUT 1 x AV analog video output
Audio Input	1 x PC Audio, 3.5mm interface 1 x Audio IN, 3.5mm interface	1 x PC Audio, 3.5mm interface 1 x Audio IN, 3.5mm interface
Audio Output	1 x earphone, 3.5mm interface 1 x Audio OUT, 3.5mm interface	1 x earphone, 3.5mm interface 1 x Audio OUT, 3.5mm interface
Other Interfaces	1 x SPDIF, 1 x RS232, 4 x USB 3.0, 3 x USB 2.0, 2 x USB TypeC, 2 x TOUCH OUT	1 x SPDIF, 1 x RS232, 4 x USB 3.0, 3 x USB 2.0, 2 x USB TypeC, 2 x TOUCH OUT
Network	2 x RJ45, supports 10M/100M/1000M BaseT selfadaptive	2 x RJ45, supports 10M/100M/1000M BaseT selfadaptive
Audio	Audio	Audio
Speaker	2.1 sound channel 2*20W+20W	2.1 sound channel 2*20W+20W
Camera	Camera	Camera
Camera	48MP Android: Pixel 13MP for Photos & 8MP for Video Windows: Pixel 48MP for Photos & 48MP for Video	48MP Android: Pixel 13MP for Photos & 8MP for Video Windows: Pixel 48MP for Photos & 48MP for Video
Viewing angle	D=118.3°, H=99.2°, V=69.7°	D=118.3°, H=99.2°, V=69.7°
Microphones	8	8
Pickup distance	8m	8m
Smart Functions	Auto Framing；Speaker Tracking；	Auto Framing；Speaker Tracking；
WiFi	WiFi	WiFi
WiFi Configuration	WiFi 6	WiFi 6
WiFi Performance	Up to 20m transmission distance in open space	Up to 20m transmission distance in open space
Bluetooth	Bluetooth	Bluetooth
Bluetooth Version	5.2	5.2
OSD	OSD	OSD
MultiLanguage	23 (Simplified Chinese, Traditional Chinese, Japanese, German, English, Spanish, French, Italian, Portuguese, Russian, Korean, Vietnamese, Ukrainian, Hungarian, Polish, Thai, Arabic, Kazakh, Bulgarian, Galician, Catalan, Uzbek, Indonesian, Nepali)	23 (Simplified Chinese, Traditional Chinese, Japanese, German, English, Spanish, French, Italian, Portuguese, Russian, Korean, Vietnamese, Ukrainian, Hungarian, Polish, Thai, Arabic, Kazakh, Bulgarian, Galician, Catalan, Uzbek, Indonesian, Nepali)
NFC	NFC	NFC
NFC	NFC	Support screen mirroring by Android phones
VESA	VESA	VESA
Wall Mount Hole (mm)	800 x 400	800 x 400
Wall Mount Screw	4M8 screw hole, hole depth 20mm	4M8 screw hole, hole depth 20mm
General	General	General
Operating Voltage	AC 100V to 240 V, 50/60 Hz	AC 100V to 240 V, 50/60 Hz
Overall Power Consumption (W)	360	360
Product Dimensions (W × H × D) (mm)	1969.8 x 1169 x 115.9	1969.8 x 1169 x 115.9
Package Dimensions (W × H × D) (mm)	2085 x 1276 x 220	2085 x 1276 x 220
Operating Temperature	0°C to 50°C	0°C to 50°C
Operating Humidity	10% to 90% RH (noncondensing)	10% to 90% RH (noncondensing)
Accessories Included	1 x power cable, 2 x touch pen, 1 x quick guide, 1 x wall mount bracket, 1 x remote control, 5 x rod antenna	1 x power cable, 2 x touch pen, 1 x quick guide, 1 x wall mount bracket, 1 x remote control, 5 x rod antenna
Weight (kg)	Net weight: 60 Gross weight: 81	Net weight: 60 Gross weight: 81
