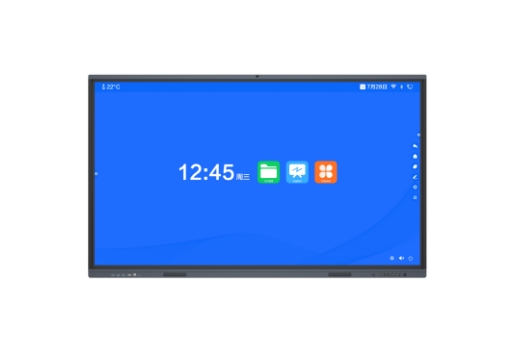

MW3586-T-X2 - Uniview - Leader of AIoT Solution

• 48MP camera module with Android/Windows dual-channel image support
• High-precision 40-point IR touch, supports fingers/pens
• 4mm tempered anti-glare glass, response ≤8ms
• Android 14.0 with 8GB RAM + 128GB ROM
• Dual 15W speakers, 2.0 channel
• Wi-Fi 5 (2.4G/5G), Bluetooth 5.0
• Full port interface: HDMI, DP, USB 2.0/Type-C, TF, RS232, RJ45, SPDIF
• Supports NFC mirroring for Android phones
• Wall mount 800×400mm, suitable for 86” applications

Model	MW3586-T-X2
Panel	Panel
Backlight	DLED backlight
Panel size	86 inches
Resolution	3840*2160
Brightness (cd/m²)	350
Contrast ratio	1200:1
Response time (ms)	8
Color support	1.07 billion colors
Viewing angle (H/V)	178°/178°
Android	Android
CPU architecture	GK6760V100
CPU operating frequency	Octa-core A55
RAM/ROM	DDR4: 8GB eMMC:128GB
CPU	1.2GHz
System version	Android 14.0
Touch	Touch
Touch control	Contactless IR sensor, supports 40-point touch
Touch precision (mm)	±2
Glass	4mm tempered glass,7H, anti-glare
Response time (ms)	≤8
Input method	Opaque objects (e.g. fingers, pens)
Interface	Interface
Video Input	2 x HDMI IN
Audio Output	1 x Line OUT 1 x Coax OUT
Other Interfaces	2 x Touch USB、1 x Type C、5 x USB 2.0、1 x RS232、1 x TF card
Rear interface	1 x RJ45, supports 10M/100M BaseT selfadaptive
Audio	Audio
Speaker	2×15W
Channel	2.0
Camera	Camera
Camera	48MP Android: Pixel 13MP for Photos & 8MP for Video Windows: Pixel 48MP for Photos & 48MP for Video
Microphone array	8
Pickup distance	8
NFC	NFC
NFC	Support screen mirroring by Android phones
Wi-Fi	Wi-Fi
Configuration	Wi-Fi 5, supports 5G/2.4G
Performance	0~12m distance in open space
Bluetooth	Bluetooth
Version	5.0
Performance	12m transmission distance in open space
OSD	OSD
Language	21 (Simplified Chinese, Traditional Chinese, English, Spanish, Korean, Japanese, Russian, Vietnamese, French, German, Italian,Nederlands, Arabic, Indonesian, Kazakh, Polish, Portuguese, Thai, Ukrainian, Nepali, Turkish)
VESA	VESA
Wall mount hole (mm)	800*400
General	General
Power input	AC 100 to 240V, 50/60Hz
Overall power consumption (W)	≤380 (without OPS)
Standby power consumption (W)	<0.5
Operating temperature	0°C to 40°C
Operating humidity	10% to 80% RH, non-condensing
Storage temperature	-20°C to 60°C
Storage humidity	10% to 90% RH, non-condensing
Product dimensions (WHD)(mm)	1953.21166115.8mm
Packaging dimensions (WHD)(mm)	20601971265mm
Weight (kg)	Net weight: 58 Gross weight: 79
Accessories included	1power cable, 2 Touch Pen, 1quick guide, 1 remote control,1* wall mounting bracket，2 x rod antenna
*Note	*The specifications listed above may vary with device model

Datasheet of MW3586-T-X2 (48MP Version)
