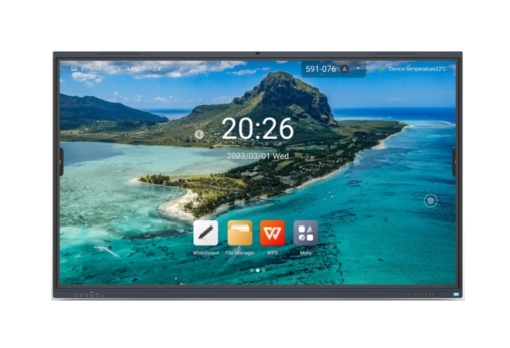

MW3575-T-Y1-NFC - Uniview - Leader of AIoT Solution

Model	MW3575-T-Y1
Display
Screen Size	75 inches
Backlight	DLED
Pixel Pitch(mm)	0.43 x 0.43mm
Resolution	3840*2160
Brightnes(cd/m2)	450
Contrast	1200:1
Response Time(ms)	≤6
Color	1.07B
Viewing Angle	Horizontal 178°, Vertical 178°
View Area(W*H)	1649.664（H）×927.936（V）
Screen Life	60000 hours
Refresh Rate	60Hz
Android System
RAM	8G
ROM	128G
CPU	A734(2.2GHZ)+ A534(2.0GHZ)
GPU	G52*8
OS	Android 13.0
Touch
Sensing Type	Infrared Touch Frame, support 20 touch points
Glass	4mm tempered glass, level 9 on Mohs hardness scale, anti-glare
Attachment Method	Zero Air Gap
Touch Accuracy (mm)	±1
Response Time (ms)	≤6
Recognizable object (mm)	1
Touchscreen input	Opaque objects (e.g. finger, pen, etc.)
Support System	Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome
Interface
Video Input	3* USB3.0、1* Type C、1* Touch USB、1* HDMI in
Video Output	1* RJ45 IN、1* DP IN、2HDMI IN、1 RS232、2USB 2.0、2USB 3.0、1TYPE C、1MIC IN、1HDMI OUT、1RJ45 OUT、1* OPTICAL OUT&SPDIF、2TOUCH、1TF、1USB 2.0 OTG、1Line OUT x HDMI OUT
Camera & Microphone
Pixel	13MP(Smart Camera) Android: Pixel 13MP for Photos & 8MP for Video Windows: Pixel 13MP for Photos & 13MP for Video
viewing angle	D=123°, H=100°, V=77°
Microphone array	8
Pickup distance	8
Smart function
Auto Framing；Speaker Tracking；
Speaker
Speaker	2*20W+20W
Channel	2.1
NFC
NFC	Support screen mirroring by Android phones
Bluetooth
Version	5.0
WIFI
Version	Wifi ：802.11 b/g/n AP ：802.11 a/b/g/n/ac
Working Frequency	2.4GHz/5GHz
Working Distance(m)	0～12
OSD
Language	21 (Simplified Chinese, Traditional Chinese, English, Spanish, Korean, Japanese, Russian, Vietnamese, French, German, Italian, Nederlands, Arabic, Indonesian, Kazakh, Polish, Portuguese, Thai, Ukrainian, Nepali, Turkish)
General
Power Supply	AC90V to AC264V
Overall power consumption (W)	≤260(without OPS)
Consumption(W)	≤0.5(Standby)
Operation Temperature	0°C～40 °C
Operating Humidity	10%～80% (No Condensation)
Storage Temperature	-20～60℃
Storage Humidity	10%～90%(No-condensing)
Product Size(WHD) (mm)	17061012116
Packing Size(WHD)(mm)	18382201138
Weight(kg)	Net Weight:45 Gross Weight:60
Accessory
Standard	2Touch Pen、1 wall mounting bracket、1power cable、1quick guide、1*Remote control
