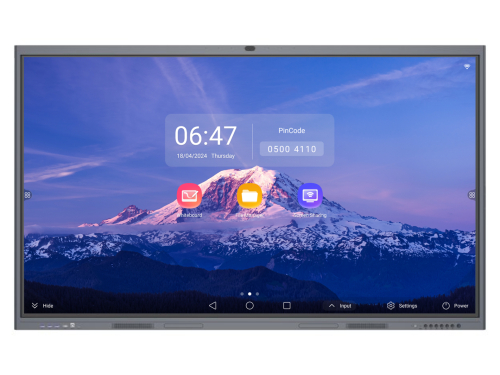

| Model | MW3565‑U‑XE3 |
| Panel | |
| Backlight | DLED backlight |
| Panel Size | 65" |
| Resolution | 3840 × 2160 |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 5000:1 |
| Response Time (ms) | 8 |
| Color Support | 1.07B |
| Viewing Angle (H/V) | 178°/178° |
| Refresh rate(Hz) | 60 |
| Color gamut | 72% |
| Lifespan | 50000H |
| Surface Hardness | 9H (7 on the Mohs scale) |
| Haze Value | 25% |
| Display Size(mm) | 1428.48 x 803.52 |
| Pixel Pitch (H × V) (mm) | 0.37 x 0.37 |
| System | |
| RAM | DDR4, 8GB |
| ROM | eMMC, 128GB |
| CPU | RockChip RK3588,quad‑core A76 + quad-core A55 |
| CPU Frequency | 2.4GHz |
| Operation System | Android 15.0 |
| Touch | |
| Touch Control | Supports 32‑point touch, 20‑point write |
| Recognizable Object | 5 points, 3mm |
| Touch Precision (mm) | 1 |
| Glass | 4mm tempered glass, 7H (Mohs), anti‑glare |
| Touch Response Time (ms) | ≤5 |
| Touch technology | Infrared touch |
| Interface | |
| Video Input | 3 x HDMI IN (4K@60) 1 x DP IN 1 x VGA(1080P@60) 1 x YPbPr 2 x AV analog video input  |
| Video Output | 1 x HDMI OUT (4K@60) 1 x DP OUT(4K@60) 1 x AV analog video output  |
| Audio Input | 1 x PC Audio, 3.5mm interface 1 x Audio IN, 3.5mm interface  |
| Audio Output | 1 x earphone, 3.5mm interface 1 x Audio OUT, 3.5mm interface  |
| Other Interfaces | 1 x SPDIF, 1 x RS232, 4 x USB 3.0, 3 x USB 2.0, 2 x USB Type‑C, 2 x TOUCH OUT |
| Network | 2 x RJ45, supports 10M/100M/1000M Base‑T self‑adaptive |
| Audio | |
| Speaker | 2*20W |
| Camera | |
| Camera | 48MP Android: Pixel 8MP for Photos &2MP for Video Windows: Pixel 48MP for Photos & 8MP for Video  |
| Microphones | 8 |
| Pickup distance | 8m |
| Wi‑Fi | |
| Wi‑Fi Configuration | Wi‑Fi 6 |
| Wi‑Fi Performance | Up to 20m transmission distance in open space |
| Bluetooth | |
| Bluetooth Version | 5.2 |
| OSD | |
| Multi‑Language | 23 (Simplified Chinese, Traditional Chinese, Japanese, German, English, Spanish, French, Italian, Portuguese, Russian, Korean, Vietnamese, Ukrainian, Hungarian, Polish, Thai, Arabic, Kazakh, Bulgarian, Galician, Catalan, Uzbek, Indonesian) |
| VESA | |
| Wall Mount Hole (mm) | 500 x 400 |
| Wall Mount Screw | 4‑M8 screw hole, hole depth 20mm |
| General | |
| Operating Voltage | AC 100V to 240 V, 50/60 Hz |
| Overall Power Consumption (W) | 220 |
| Product Dimensions (W × H × D) (mm) | 1500.6 x 886.8 x 115.7 |
| Package Dimensions (W × H × D) (mm) | 1615.8 x 1011.9 x 220 |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90% RH (noncondensing) |
| Accessories Included | 1 x power cable, 2 x touch pen, 1 x quick guide, 1 x wall mount bracket, 1 x infrared remote control, 3 x rod antenna,1 x HDMI cable(3m), 1 x Touch cable(3m), 1 x USB cable(3m), |
| Weight (kg) | Net weight: 38 Gross weight: 49  |
