Easy Series
Products from the Easy series are the most popular choices for entry-level applications such as residential and small retail stores.
Hello, your privacy is important to us. Uniview websites use cookies to store info on your device and create the most secure and effective website . By continuing to use our websites, please accept the cookies could be stored on your device, which outlined our cookie policy and privacy policy .
Products from the Easy series are the most popular choices for entry-level applications such as residential and small retail stores.
Incredibly, you can always find the ideal product in the Prime range, which has even more advanced features to achieve excellent performance.
The Pro series are born with excellent ultra-smart technology, to deliver superior users experience.

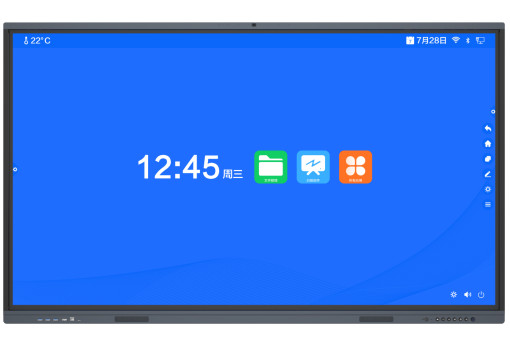

Model | MW3565-T-X3 | ||||
Panel | |||||
Backlight | DLED backlight | ||||
Panel size | 65 inches | ||||
Resolution | 3840*2160 | ||||
Brightness (cd/m²) | 350 | ||||
Contrast ratio | 5000:1 | ||||
Response time (ms) | 8 | ||||
Color support | 1.07 billion colors | ||||
Viewing angle (H/V) | 178°/178° | ||||
Android | |||||
CPU architecture | GK6760V100 | ||||
CPU operating frequency | Octa-core A55 | ||||
RAM/ROM | DDR4: 4GB eMMC:32GB | ||||
CPU | 1.2GHz | ||||
System version | Android 14.0 | ||||
Touch | |||||
Touch control | Contactless IR sensor, supports 20-point touch | ||||
Touch precision (mm) | ±2 | ||||
Glass | 3mm tempered glass, level 7 on Mohs hardness scale, anti-glare | ||||
Response time (ms) | ≤8 | ||||
Input method | Opaque objects (e.g. fingers, pens) | ||||
Interface | |||||
Video Input | 2 x HDMI IN | ||||
Audio Output | 1 x Earphone OUT,1 x Coax OUT | ||||
Other Interfaces | 2 x Touch USB、1 x Type C、2 x USB 2.0、3 x USB 3.0、1 x RS232、1 x TF card | ||||
Rear interface | 1 x RJ45, supports 10M/100M BaseT selfadaptive | ||||
Audio | |||||
Speaker | 2×20W | ||||
Channel | 2.0 | ||||
Camera | |||||
Camera | 48MP,Android: Pixel 8MP for Photos & 2MP for Video,Windows: Pixel 48MP for Photos & 48MP for Video | ||||
Microphone array | 8 | ||||
Pickup distance | 8m | ||||
Wi-Fi | |||||
Configuration | Wi-Fi 5, supports 5G/2.4G | ||||
Performance | 0~12m distance in open space | ||||
Bluetooth | |||||
Version | 5.0 | ||||
Performance | 12m transmission distance in open space | ||||
OSD | |||||
Language | 21 (Simplified Chinese, Traditional Chinese, English, Spanish, Korean, Japanese, Russian, Vietnamese, French, German, Italian, Netherlands, Arabic, Indonesian, Kazakh, Polish, Portuguese, Thai, Ukrainian, Nepali, Turkish) | ||||
VESA | |||||
Wall mount hole (mm) | 500*400 | ||||
General | |||||
Power input | AC 100 to 240V, 50/60Hz | ||||
Overall power consumption (W) | ≤140 (without OPS) | ||||
Standby power consumption (W) | <0.5 | ||||
Operating temperature | 0°C to 40°C | ||||
Operating humidity | 10% to 80% RH, non-condensing | ||||
Storage temperature | -20°C to 60°C | ||||
Storage humidity | 10% to 90% RH, non-condensing | ||||
Product dimensions (W*H*D)(mm) | 1483.8*902*115.8mm | ||||
Packaging dimensions (W*H*D)(mm) | 1590*197*1007mm | ||||
Weight (kg) | Net weight: 36,Gross weight: 47 | ||||
Accessories included | 1*power cable, 2* Touch Pen, 1*quick guide, 1* remote control,1* wall mounting bracket,2 x rod antenna,1*HDMI Cable(3m),1*Touch USB (3m) | ||||
*Note | *The specifications listed above may vary with device model |
