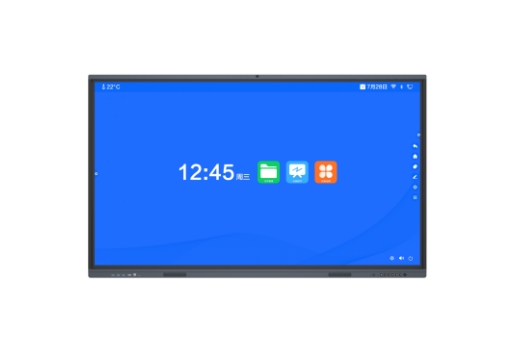

Model | MW3565-T-X2 | ||||
Panel | Panel | ||||
Backlight | DLED backlight | ||||
Panel size | 65 inches | ||||
Resolution | 3840*2160 | ||||
Brightness (cd/m²) | 350 | ||||
Contrast ratio | 1200:1 | ||||
Response time (ms) | 8 | ||||
Color support | 1.07 billion colors | ||||
Viewing angle (H/V) | 178°/178° | ||||
Android | Android | ||||
CPU architecture | GK6760V100 | ||||
CPU operating frequency | Octa-core A55 | ||||
RAM/ROM | DDR4: 8GB eMMC:128GB | ||||
CPU | 1.2GHz | ||||
System version | Android 14.0 | ||||
Touch | Touch | ||||
Touch control | Contactless IR sensor, supports 40-point touch | ||||
Touch precision (mm) | ±2 | ||||
Glass | 4mm tempered glass,7H, anti-glare | ||||
Response time (ms) | ≤8 | ||||
Input method | Opaque objects (e.g. fingers, pens) | ||||
Interface | Interface | ||||
Video Input | 2 x HDMI IN | ||||
Audio Output | 1 x Line OUT 1 x Coax OUT | ||||
Other Interfaces | 2 x Touch USB、1 x Type C、5 x USB 2.0、1 x RS232、1 x TF card | ||||
Rear interface | 1 x RJ45, supports 10M/100M BaseT selfadaptive | ||||
Audio | Audio | ||||
Speaker | 2×15W | ||||
Channel | 2.0 | ||||
Camera | Camera | ||||
Camera | 16MP Android: Pixel 8MP for Photos & 2MP for Video Windows: Pixel 16MP for Photos & 16MP for Video | ||||
Microphone array | 8 | ||||
Pickup distance | 8 | ||||
NFC | NFC | ||||
NFC | Support screen mirroring by Android phones | ||||
Wi-Fi | Wi-Fi | ||||
Configuration | Wi-Fi 5, supports 5G/2.4G | ||||
Performance | 0~12m distance in open space | ||||
Bluetooth | Bluetooth | ||||
Version | 5.0 | ||||
Performance | 12m transmission distance in open space | ||||
OSD | OSD | ||||
Language | 21 (Simplified Chinese, Traditional Chinese, English, Spanish, Korean, Japanese, Russian, Vietnamese, French, German, Italian,Nederlands, Arabic, Indonesian, Kazakh, Polish, Portuguese, Thai, Ukrainian, Nepali, Turkish) | ||||
VESA | VESA | ||||
Wall mount hole (mm) | 500*400 | ||||
General | General | ||||
Power input | AC 100 to 240V, 50/60Hz | ||||
Overall power consumption (W) | ≤140 (without OPS) | ||||
Standby power consumption (W) | <0.5 | ||||
Operating temperature | 0°C to 40°C | ||||
Operating humidity | 10% to 80% RH, non-condensing | ||||
Storage temperature | -20°C to 60°C | ||||
Storage humidity | 10% to 90% RH, non-condensing | ||||
Product dimensions (W*H*D)(mm) | 1483.8*902*115.8mm | ||||
Packaging dimensions (W*H*D)(mm) | 1590*197*1007mm | ||||
Weight (kg) | Net weight: 36 Gross weight: 47 | ||||
Accessories included | 1*power cable, 2* Touch Pen, 1*quick guide, 1* remote control,1* wall mounting bracket,2 x rod antenna | ||||
*Note | *The specifications listed above may vary with device model |
