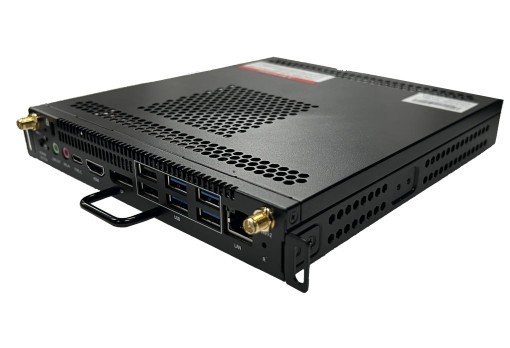

| Model | HB-7099-MW(CL) | ||||
| BOM | |||||
| BOM | 9801C2S9 | ||||
| System | |||||
| CPU | I5-12450H | ||||
| Cores | 8 | ||||
| Threads | 12 | ||||
| CPU Frequency | 2.0 GHz | ||||
| Max. Turbo Frequency | 4.4 GHz | ||||
| GPU | Intel integrated Graphics | ||||
| RAM | 8 GB DDR4, support for expansion up to 32 GB | ||||
| ROM | 256 GB SSD | ||||
| Operation System | Windows 11 Enterprise | ||||
| Interface | |||||
| USB | 4 × USB 3.0, 2 × USB 2.0, 1 × USB 3.0 USB Type-C | ||||
| Audio | 1 × MIC, 1 × Line Out | ||||
| HDMI | 1 × HDMI (Max. Resolution: 3840 × 2160@60 Hz) | ||||
| DP | 1 × DP (Max. Resolution: 3840 × 2160@60 Hz) | ||||
| Network | 1 × RJ45 (10/100/1000M) | ||||
| Antenna | 2 × dual-band antenna | ||||
| Reset Key | 1 × Reset Key | ||||
| Power on/off Switch | 1 × power on/off switch | ||||
| Power Indicator | 1 × power indicator | ||||
| WLAN | |||||
| WLAN | 1 × M.2 2230 (Support Cnvi and WIFI 6E, BT 5.2) | ||||
| General | |||||
| Power Supply | DC 19V, supplies power via OPS interface | ||||
| Overall Power Consumption (W) | ≤85 | ||||
| Standby Power Consumption (W) | ≤35 | ||||
| Product Dimensions (W × H × D) (mm) | 195 × 180 × 30 | ||||
| Package Dimensions (W × H × D) (mm) | 306 × 276 × 78 | ||||
| Weight (kg) | Net Weight: 0.9 | ||||
| Operating Temperature | 10 ° C to 50 ° C | ||||
| Operating Humidity | 10% to 90% RH | ||||
| Storage Temperature | 20 ° C to 70 ° C | ||||
| Storage Humidity | 10% to 90% RH | ||||
