PWR-800A-AC-NB

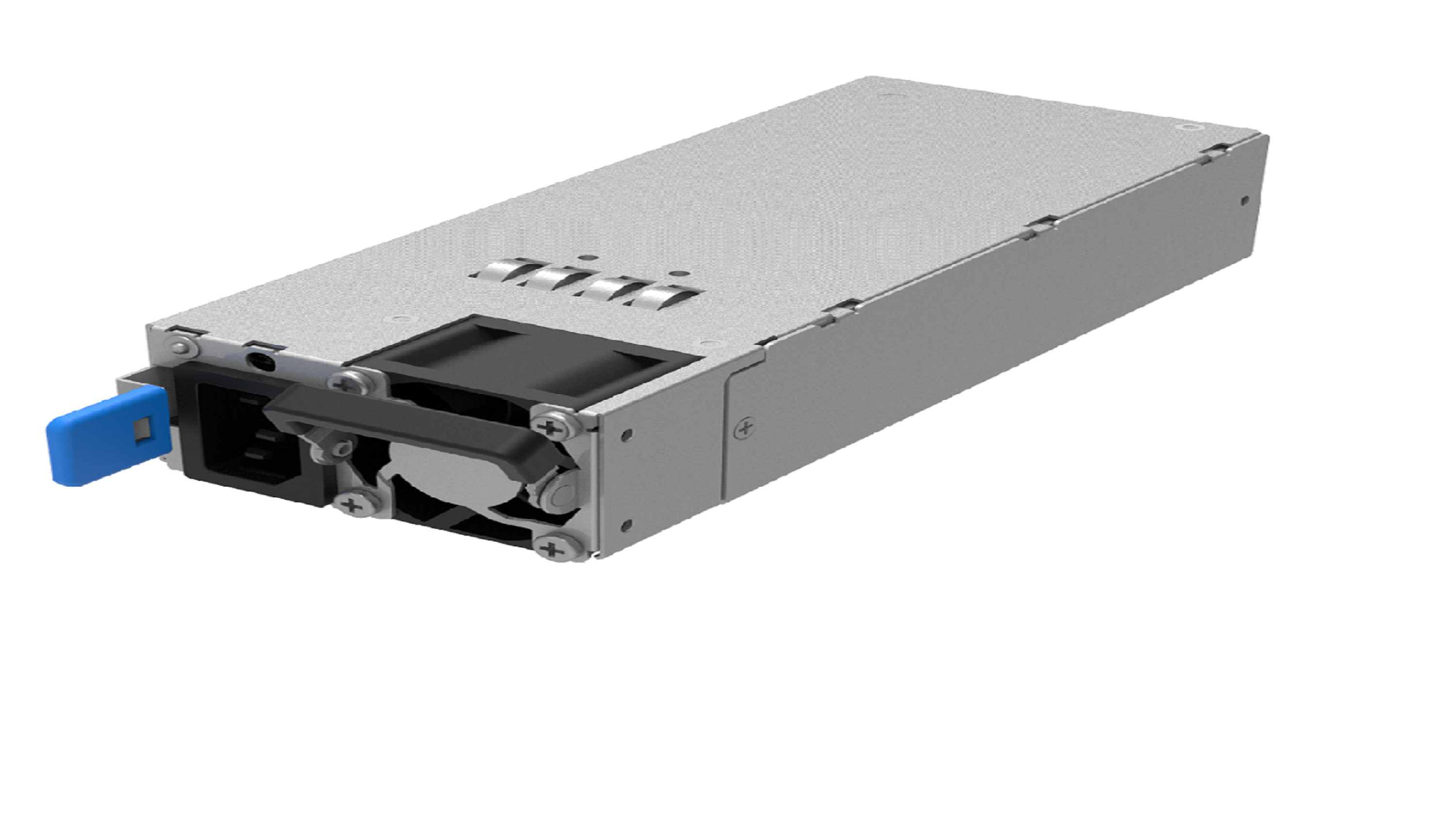

800W AC Power Module
• 800W AC power module support for 1+1 redundant backup, hot plug and load flow sharing
Specification
Download
How to buy
 PWR-800A-AC-NB
Power
Indicator lightOutput ON and OK : Green
No AC power to all power supplies : OFF
AC present/Only 12Vsb on (PS off) : 1Hz Blink Green (0.5s Off and 0.5s Green)
Power supply warning events where the PSU continues to operate: AC/DC Voltage warning : 1Hz Blink Orange （0.5s Off and 0.5s Orange）
AC cord unplugged or DC power lost; with a second power supply in parallels still with AC input power : Orange
Power supply warning events where the PSU continues to operate: high temperature warning, Fan warning, Over current warning, OV warning : 1Hz Blink Orange （0.5s Off and 0.5s Orange）
Power supply critical event causing a shutdown: UVP, OVP, OCP, OTP、Fan fault、short out : Orange
When the power in cold redundant state : 1Hz Blink Green (0.5s Off and 0.5s Green) Power supply FW update mode : 2Hz Blink Green
AC Input Voltage90-264VAC
AC Input Frequency47 ~63 Hz
AC Input current100-240V/10A，180-360V/10A
Power Working Temperature-5℃ ~ 70℃
Power Storage Temperature-40℃ ~ 70℃
