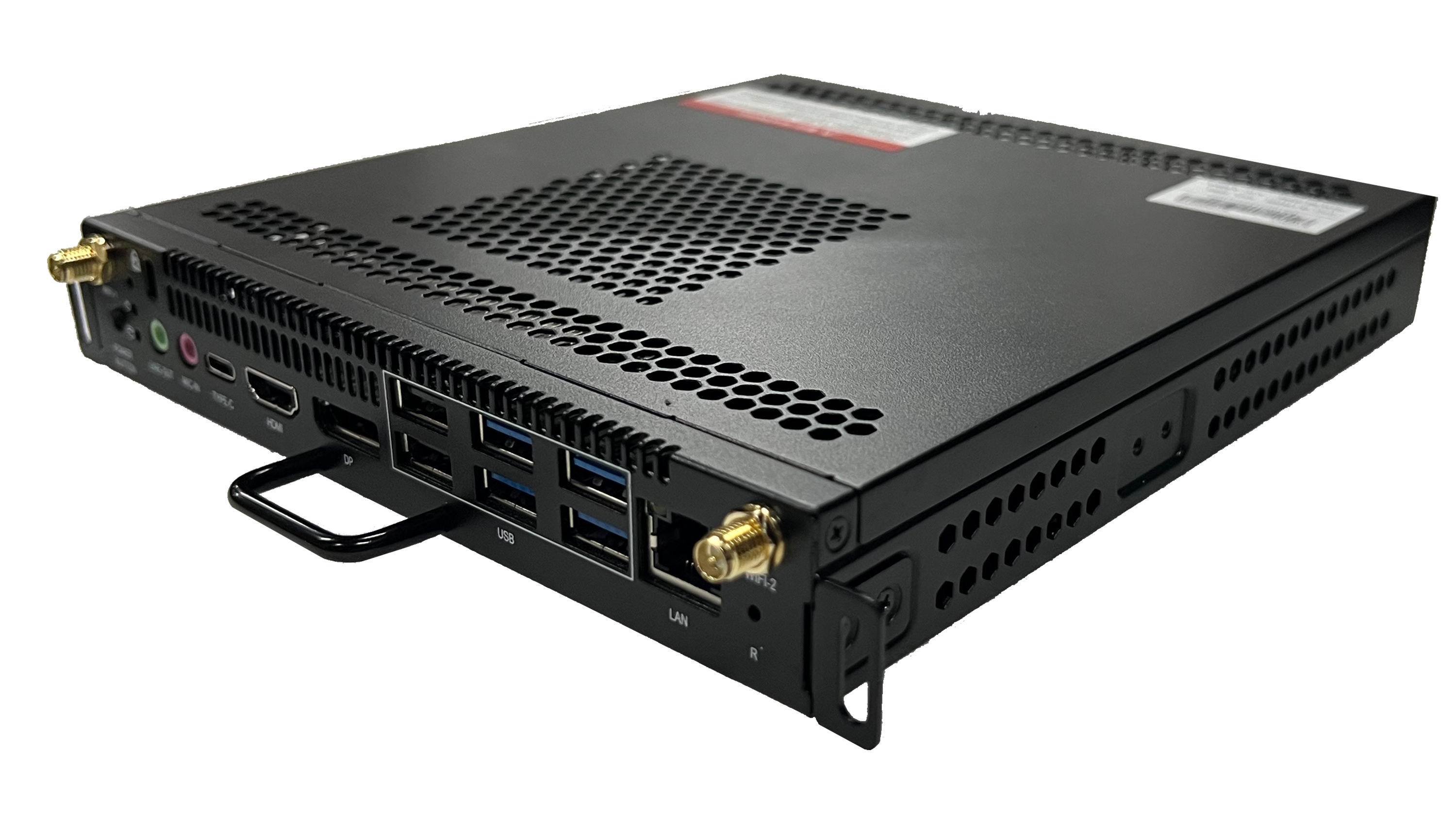

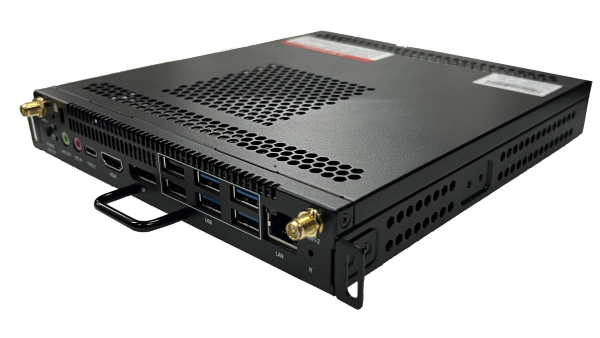

HB-7099-MW
I5 Processor Pluggable PC Module(Win11 System is Not Activated)
• Slim and compact design takes up less space.
• Compliant with OPS standards, ideally suited for smart interactive displays.
• DP/HDMI interface supports synchronous and asynchronous display.
• 4K UHD display.
• WLAN with hotspot support.
• Intelligent fan control.
Specification
Download
How to buy
 HB-7099-MW
BOM
BOM9801C2S9
System
CPUI5-12450H
Cores8
Threads12
CPU Frequency2.0 GHz
Max. Turbo Frequency4.4 GHz
RAM8 GB DDR4, support for expansion up to 32 GB
ROM256 GB SSD
Operation SystemWindows 11 Enterprise (not activated)
Interface
USB4 × USB 3.0, 2 × USB 2.0, 1 × USB 3.0 USB Type-C
Audio1 × MIC, 1 × Line Out
HDMI1 × HDMI (Max. Resolution: 3840 × 2160@60 Hz)
DP1 × DP (Max. Resolution: 3840 × 2160@60 Hz)
Network1 × RJ45 (10/100/1000M)
Antenna2 × dual-band antenna
Reset Key1 × Reset Key
Power on/off Switch1 × power on/off switch
Power Indicator1 × power indicator
WLAN
WLAN1 × M.2 2230 (Support Cnvi and WIFI 6E, BT 5.2)
General
Power SupplyDC 19V, supplies power via OPS interface
Overall Power Consumption (W)≤85
Standby Power Consumption (W)≤35
Product Dimensions (W × H × D) (mm)195 × 180 × 30
Package Dimensions (W × H × D) (mm)306 × 276 × 78
Weight (kg)Net Weight: 0.9
Operating Temperature-10°C to 50°C
Operating Humidity10% to 90% RH
Storage Temperature-20°C to 70°C
Storage Humidity10% to 90% RH
