| GCB01-B7 | ||||||||
| Interface | ||||||||

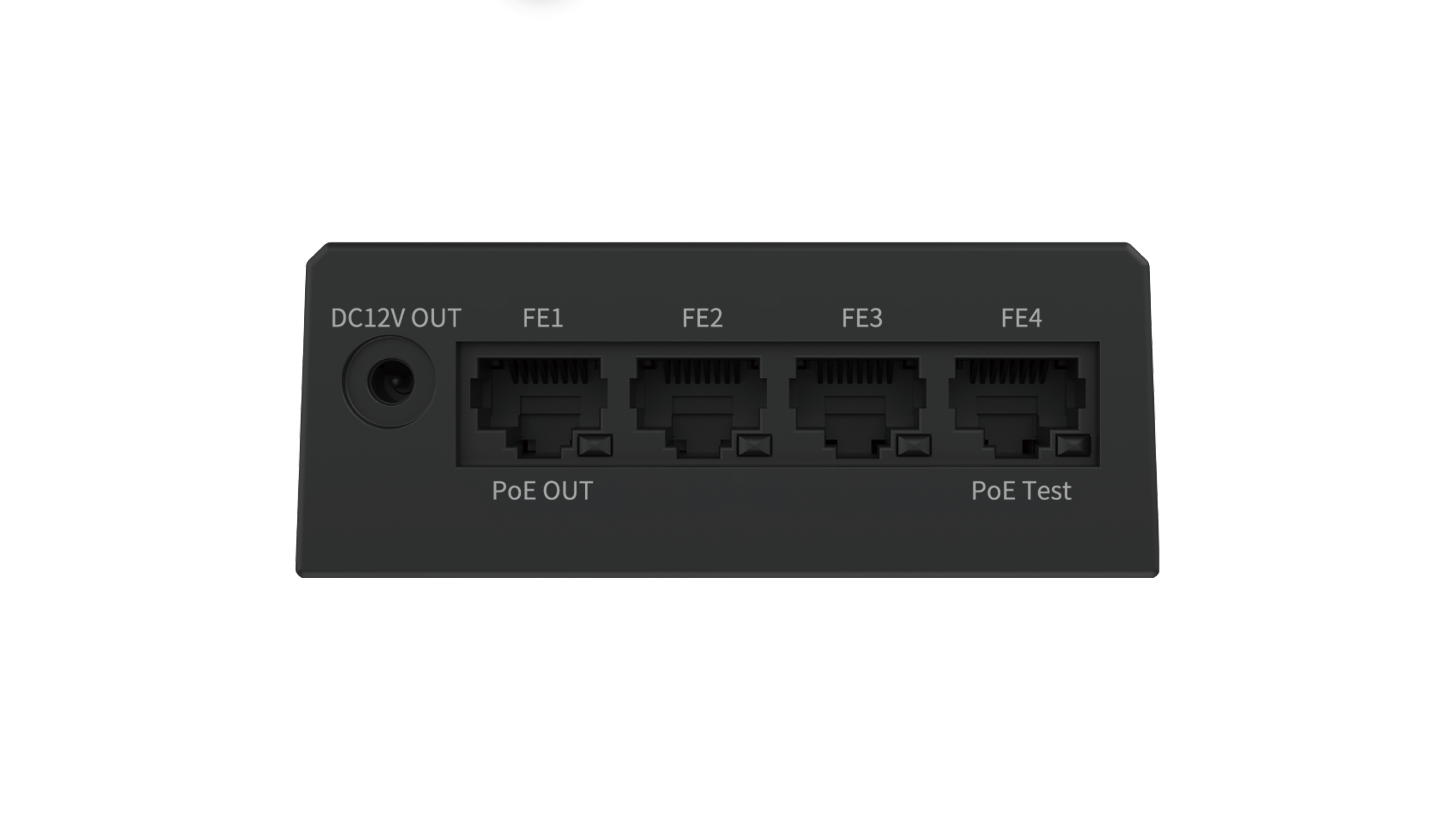

| Network | 4 × RJ45 10 M/100 M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test | |||||||
| Voltage Test | 1 x PSE Voltage Test(PSE voltage detection Range: 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC voltage Test(DC voltage detection Range: 1V~56V) | |||||||
| Network | ||||||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n) | |||||||
| Structure / Environment | ||||||||
| Battery Capacity | 18650 lithium battery, 7500 mAH | |||||||

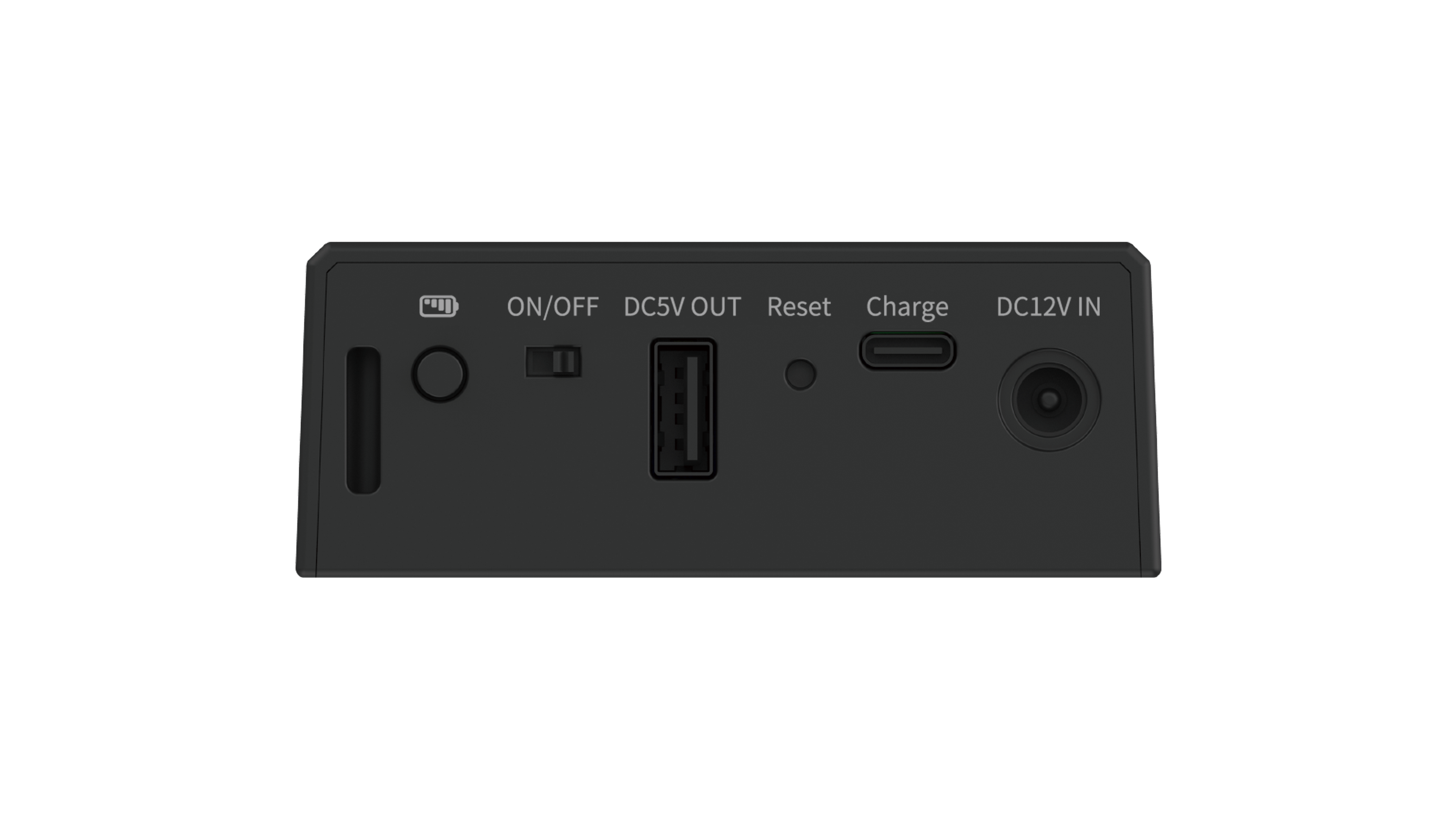

| Power Input | 1 × DC 5 V/2 A max, type-c | |||||||
| Power Output | 1 × DC 12 V/1 A output; 1 × DC 5 V/1 A output, type-A | |||||||
| General | ||||||||

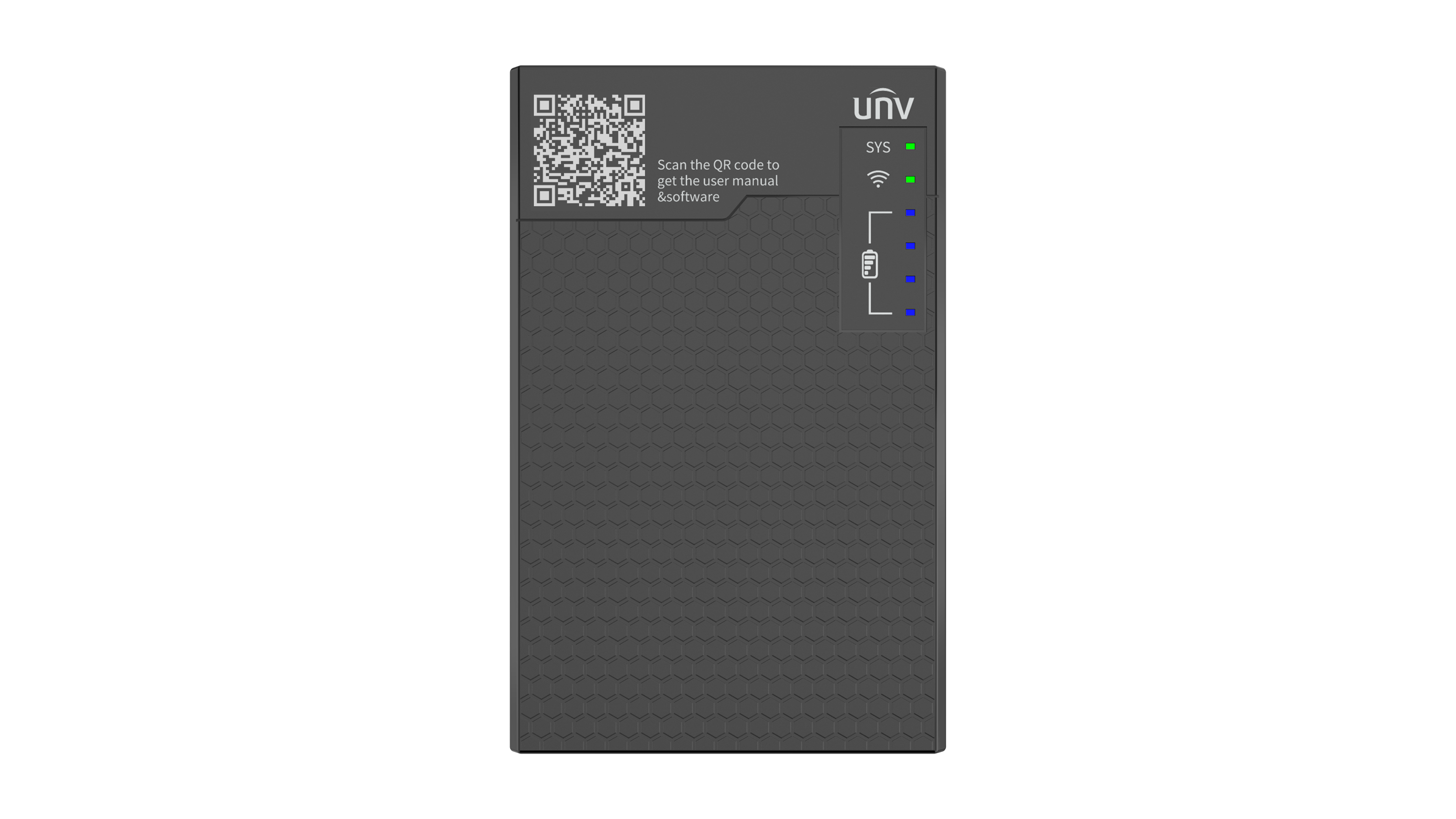

| LED Indicator | System indicator, WiFi indicator, Battery indicator | |||||||
| Dimensions | 130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H) | |||||||
| Working Environment | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Reset Button | Support | |||||||
