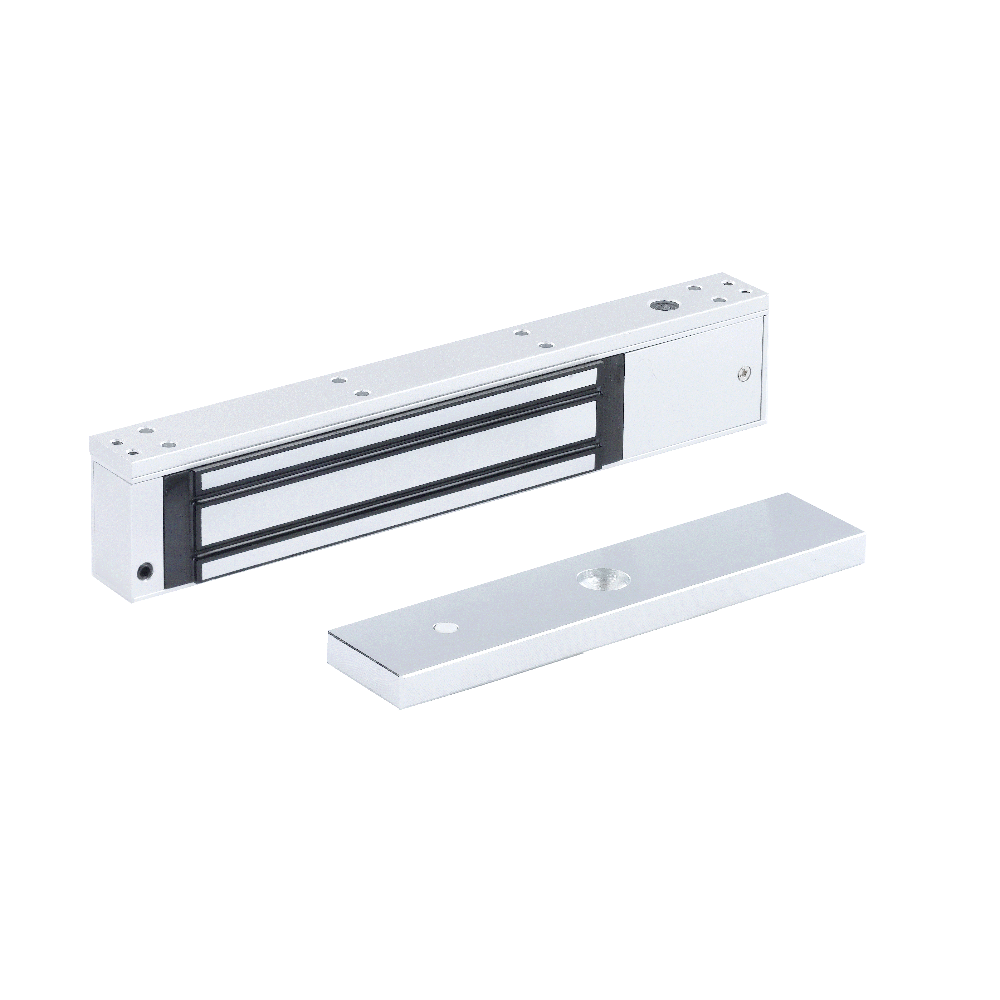

OEA-ML12-280 | ||||||||
Hardware Specification | ||||||||
Power Supply | DC12V/DC24V | |||||||
Operating Current | 460mA | |||||||
Standby Current | 460mA/230mA | |||||||
Security Type | Failsafe | |||||||
Operating Environment | Operating temperature: -30°C to +60°C, operating humidity: ≤95% | |||||||
Weight | 2kg | |||||||
Dimensions (L x W x H) | Lock housing: 250×47.7×27.5; armature plate: 180×38×11.7 | |||||||
Door Support | Wooden door, glass door, metal door, etc. | |||||||
Attestation | CE/FCC/ROHS |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 6/20/2025 1:10:53 PM | UNV OEA-ML12-280 OEA-ML12-280 Single Door Magnetic Lock (280KG).pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 4/23/2025 3:30:50 AM | OEA-ML12-280_HD_Image_1.png | png | Download |
Class | Date | Title | Download |
Dimensions | 4/23/2025 3:30:50 AM | OEA-ML12-280_Dimensions_1.png | Download |
