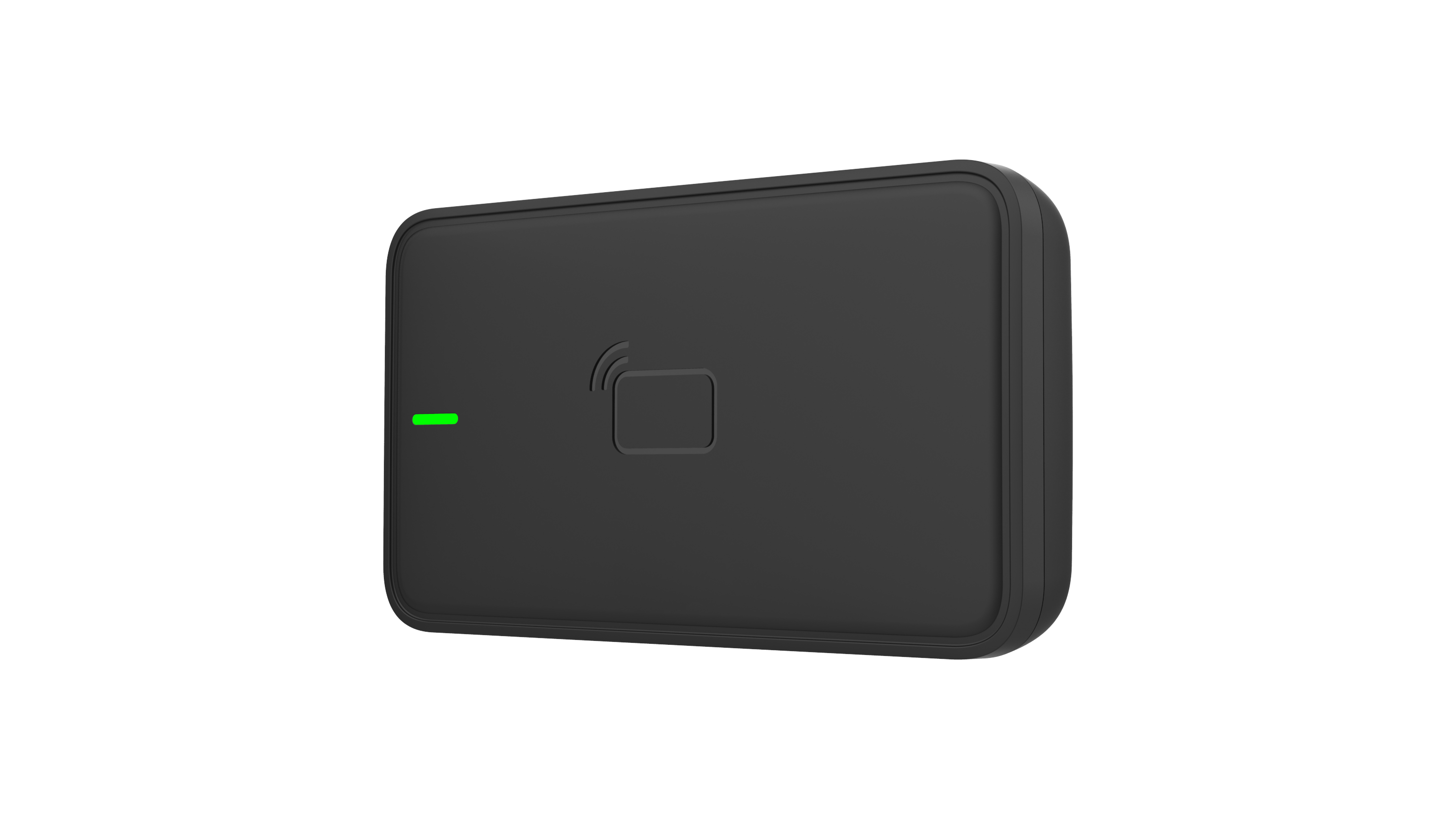

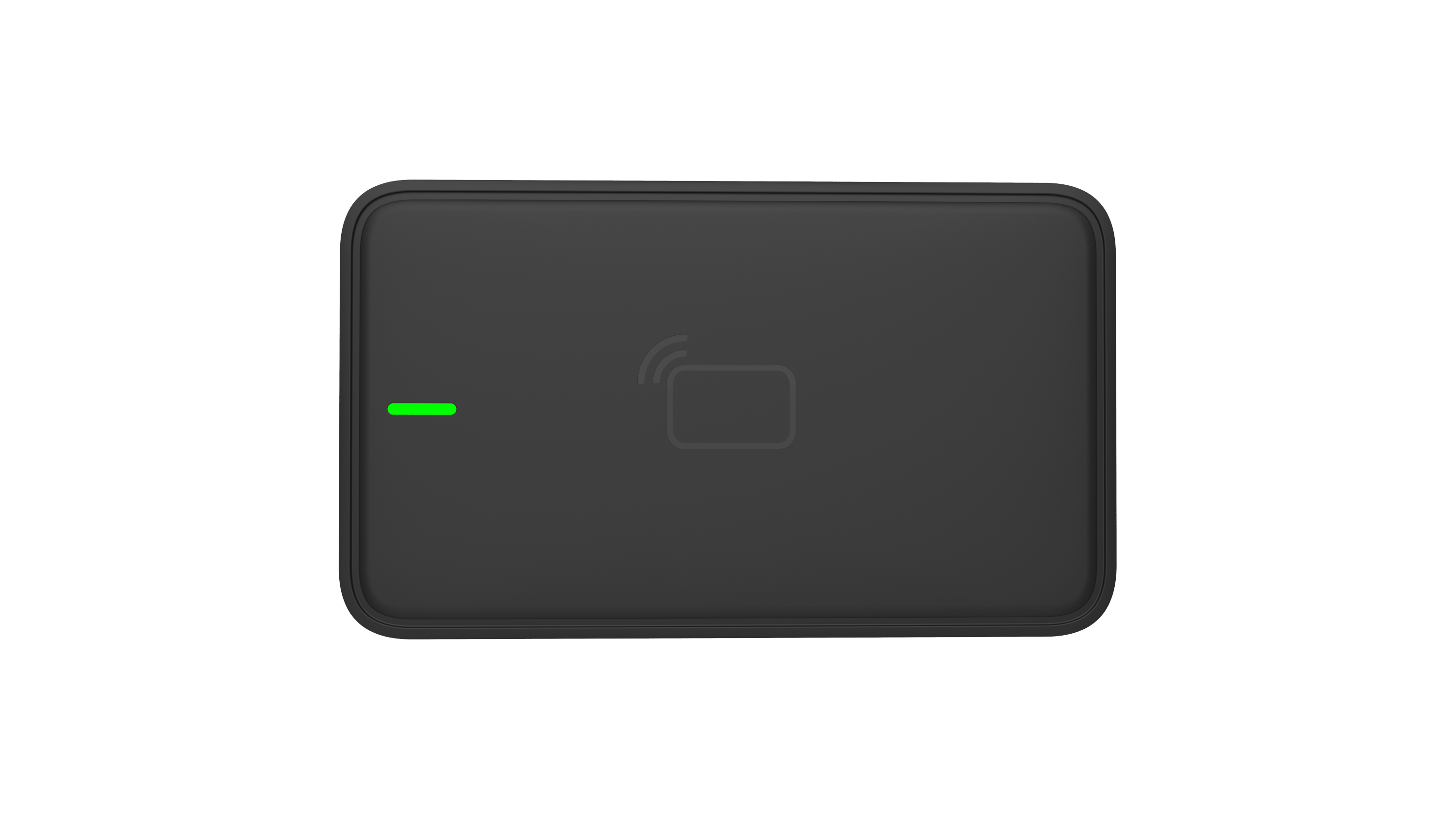

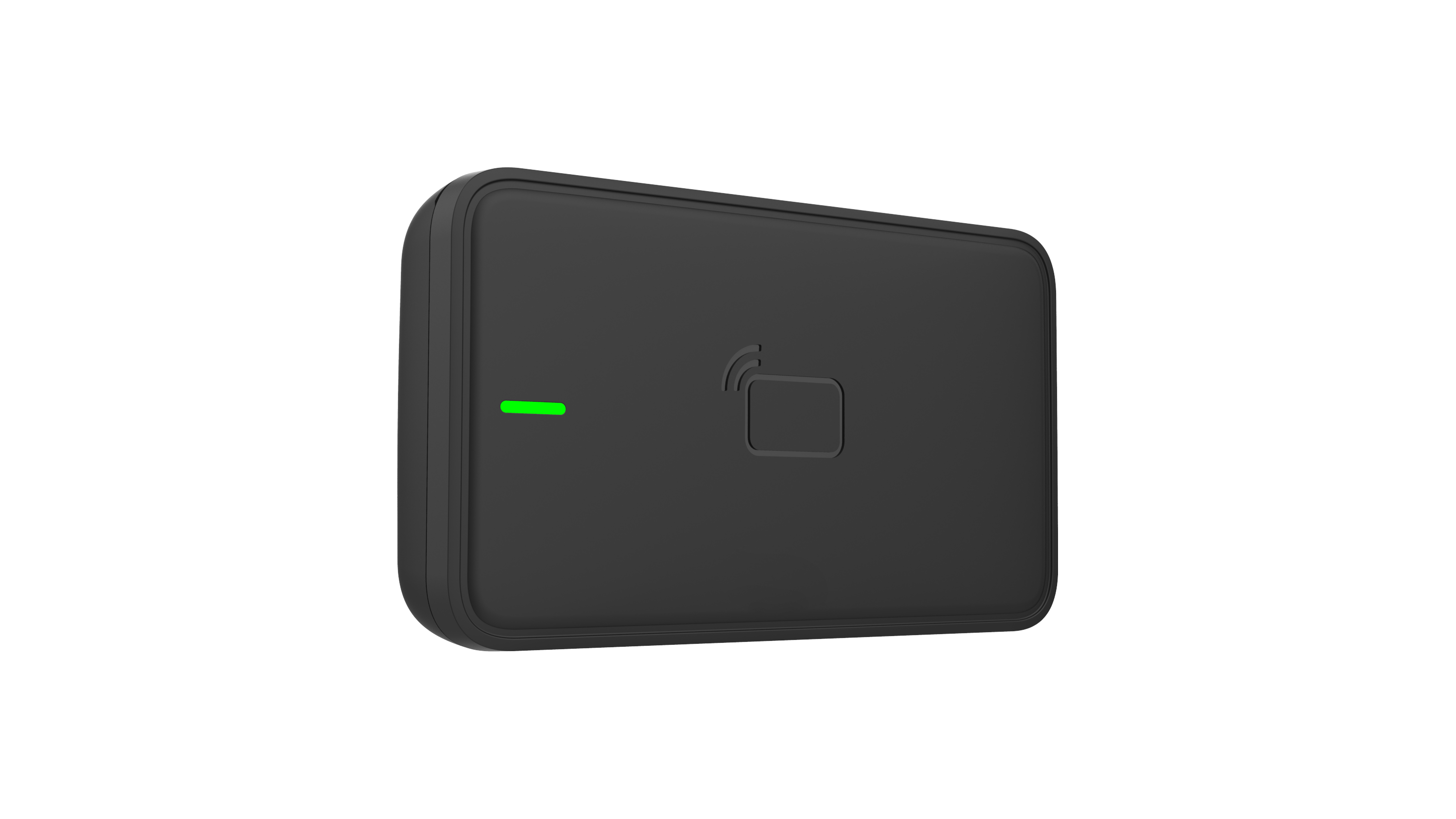

OEC-W2D-M-NB
Desktop Mifare Card Issuer
• Supports USB power supply.
• Supports Mifare card.
• Supports reading card numbers and writing data to a card’s specified sectors.
Specification
Download
How to buy
 OEC-W2D-M-NB
Hardware Specification
MaterialPC
Weight0.17kg (with package), 0.058kg (net weight)
Mount MethodDesktop mount
Power SupplyVoltage: DC 5V (powered by USB), current ≤ 116mA
Operating Frequency13.56MHz
Reading DistanceIC card: ≤ 3cm
Operating EnvironmentTemperature: -30°C to 65°C, humidity: 10% to 90%
Dimensions (L x W x H)110mm*65mm*24mm
InterfaceUSB (plug and play, driver-free)
Basic Business
Card ProtocolISO 14443-A, ISO 14443-B
Reading Time< 1s
Data Format10-digit decimal card number
Specification Index
Application ScenarioIndoors
