OEC-R3H-M | ||||||||
Hardware Specification | ||||||||
Operating Frequency | 13.56MHz | |||||||
Interface | Wiegand 26/34, RS485 | |||||||
Material | PC | |||||||
Dimensions (L x W x H) | 129*88*21mm | |||||||
Weight | 134g | |||||||
Mount Method | 115*73mm junction box, 86*86mm junction box | |||||||
Operating Temperature | -30°C to 65°C | |||||||
Operating Humidity | 10% to 90% | |||||||
Storage Temperature | -40°C to 65°C | |||||||
Indicator | Steady blue: Normal operation; Steady green for 1s: Card authentication succeeded; Steady red for 1s: Card authentication failed | |||||||
Power Consumption | 0.732W | |||||||
Operating Voltage | DC 12V ± 25% | |||||||
Operating Current | 61mA | |||||||
Reading Distance | IC card: max. 5cm | |||||||
Authentication Mode | Card | |||||||
Protection Level | IP65 | |||||||
Basic Business | ||||||||
Reading Time | < 1s | |||||||
Card Type | Mifare card |
Class | Date | Title | Language | Type | Download |
Datasheet | 5/13/2024 12:24:55 | UNV OEC-R3H-M Wall Mount Mifare Card Reader 20231221.pdf | English | Download |
Class | Date | Title | Type | Download |

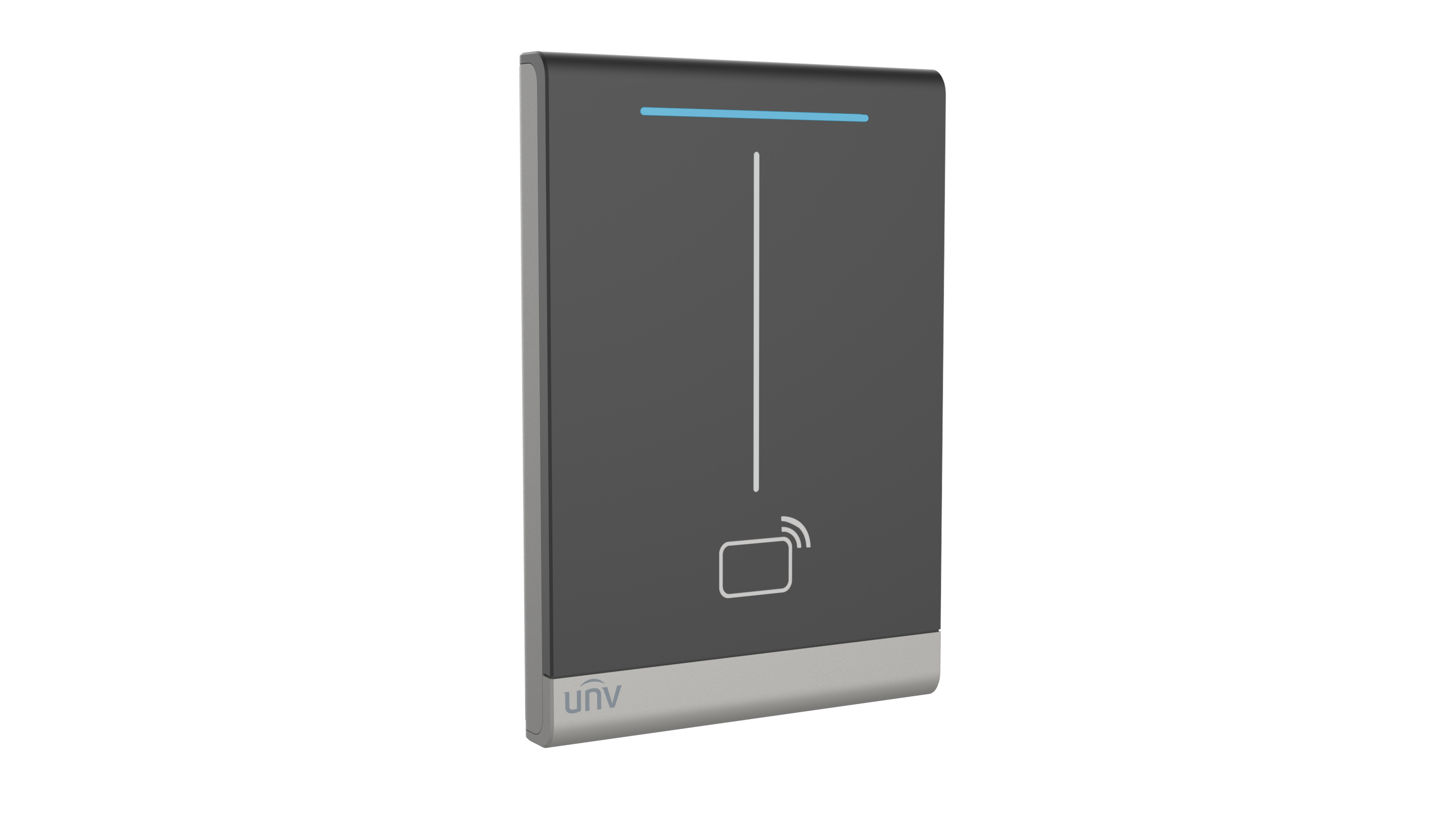

HD Image | 9/12/2024 15:08:03 | OEC-R3H-M_HD_Image_1.png | png | Download |

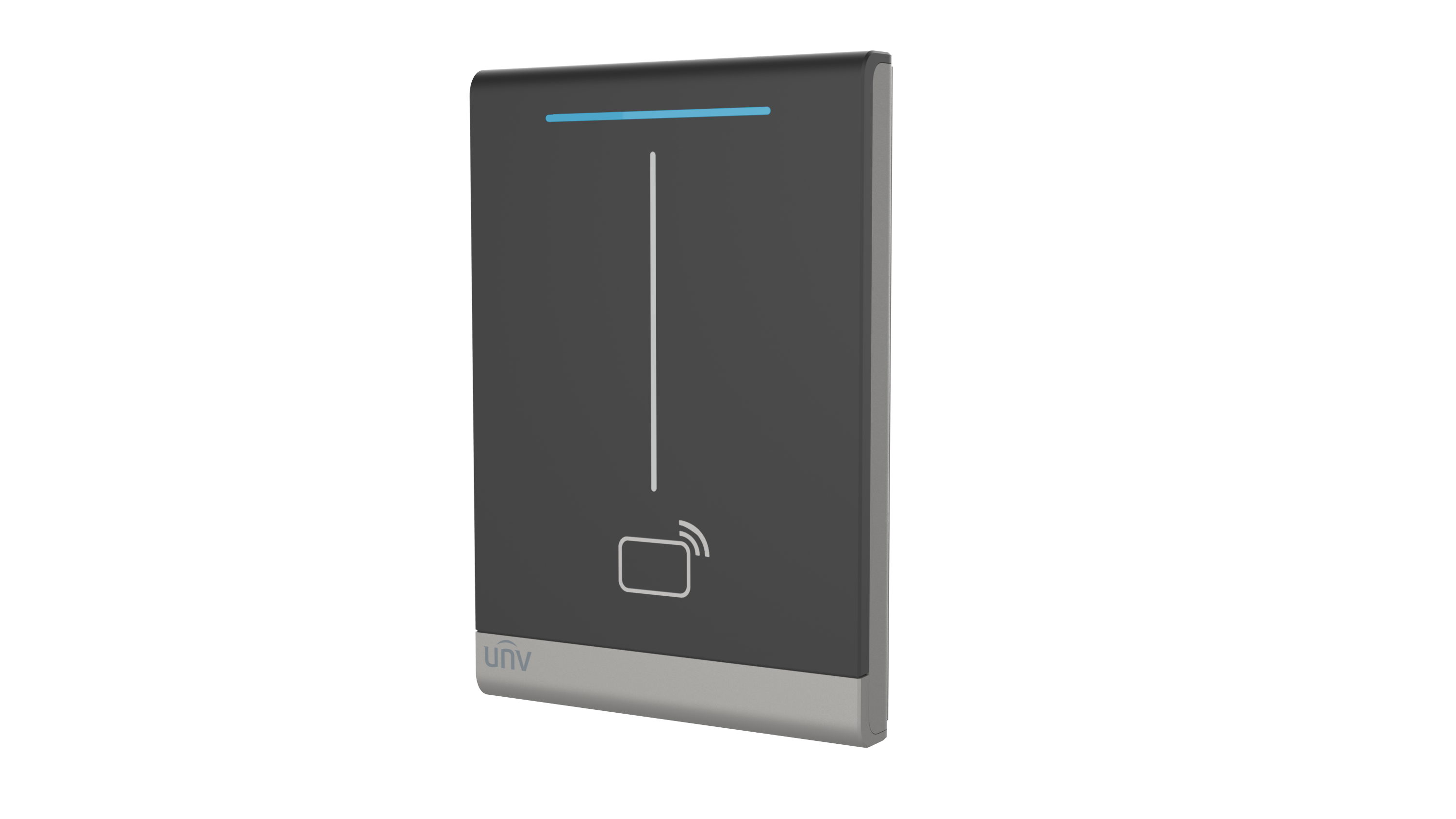

HD Image | 9/12/2024 15:08:03 | OEC-R3H-M_HD_Image_2.png | png | Download |

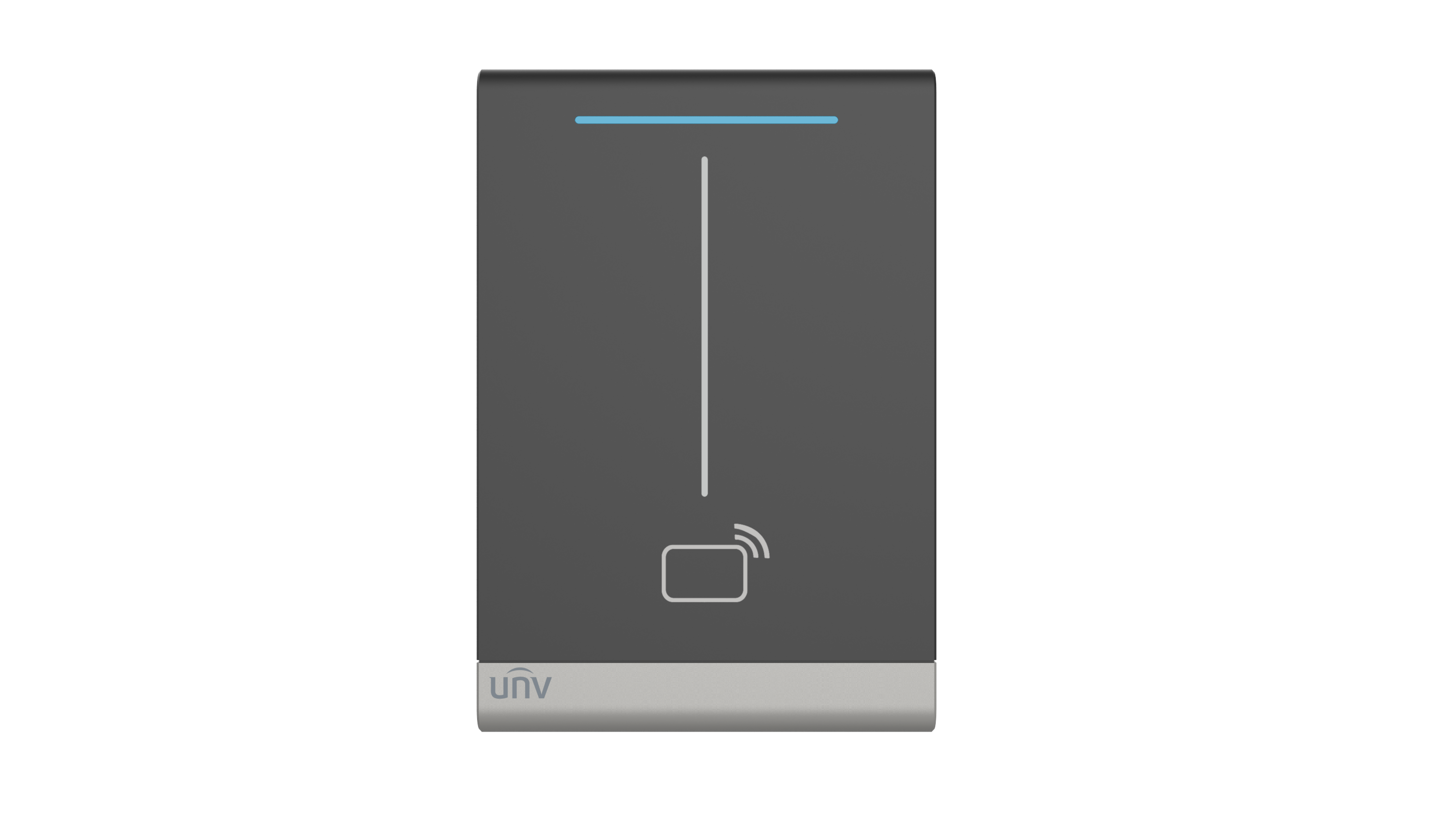

HD Image | 9/12/2024 15:08:03 | OEC-R3H-M_HD_Image_3.png | png | Download |
Class | Date | Title | Language | Type | Download |
Quick Guide | 8/16/2024 05:16:02 | 3101C1QD-UNV-OEC-R3H-M&OEC-R3H-MK-Card Reader Quick Guide-V1.01-EN-For Printing20240816.pdf | English | Download |
Class | Date | Title | Download |
Dimensions | 9/12/2024 15:08:03 | OEC-R3H-M_Dimensions_1.png | Download |
