Multi-sensor cameras warp-free wide shots by syncing up multiple sensors with pinpoint alignment and smart stitching tricks. Overlapping zones and fast algorithms keep images flowing seamlessly, while top-notch lenses and digital tweaks zap any distortion. They cover huge areas without missing a spot, cut down on gear costs, and stay sharp even in tricky light, perfect for busy spots like airports or public squares.

Fundamentals of Multi-Sensor Camera Architecture

Overview of Multi-Sensor Imaging Systems

Multi-sensor camera setups are built to record vast areas by using several image sensors packed into one device. Each sensor is set at a specific angle to cover a unique part of the surroundings. Together, they create a combined picture that gives a broad view without losing any fine details.

In contrast to old-school single-lens cameras that need to swivel or tilt to scan wide spaces—often leaving gaps or blind spots—multi-sensor setups provide constant coverage in multiple directions at once. This design is incredibly useful in busy places like street crossings, airports, or big event spaces where staying aware of everything happening is a top priority.

Sensor Alignment and Calibration Techniques

To get seamless stitching between pictures from different sensors, exact positioning and fine-tuning are a must. If things are off even a little, it can cause weird visual errors or obvious lines in the final joined image. Modern calibration uses both physical adjustments during manufacturing and digital fixes while the system runs.

Every sensor needs to be carefully aligned to blend overlapping views smoothly. The process often includes fixing lens distortions, matching colors, and lining up angles of view. These efforts help the system produce a unified wide image with hardly any noticeable flaws.

Importance of Lens Design in Image Fidelity

The quality of a lens plays a huge role in how clear and true-to-life the captured images are. In multi-sensor setups, having lenses with matching features across all parts is vital for steady sharpness and color accuracy. Wide-angle lenses with minimal bending effects are often chosen since they cover more ground per sensor while keeping edges from looking warped.

Careful lens crafting also cuts down on color errors and darkening at the edges—problems that can mess up stitching quality. Using lenses with wide openings boosts performance in dim light too, ensuring steady image clarity no matter the lighting around.

Core Technologies Enabling Seamless Image Stitching

Image Overlap and Field of View Optimization

In setups with multiple sensors, the overlapping areas between neighboring sensors aren’t just extra space—they’re key to creating smooth shifts between different views.

Role of Overlapping Zones in Smooth Transitions

These shared areas act as guideposts for stitching tools to line up details correctly across images. They make sure moving things, like cars or people, look unbroken and natural as they move from one sensor’s frame to the next.

Managing Parallax Errors in Multi-Sensor Layouts

Parallax happens when objects at varying distances look out of place between sensors because of their physical spacing. To lessen this issue, ideal sensor placement and matching focus distances are used. Special software also steps in by guessing depth hints and tweaking images to fix the problem.

Real-Time Image Stitching Algorithms

Instant processing is super important for tasks needing quick awareness of surroundings, like watching traffic or guarding boundaries.

Edge Blending and Color Balancing Methods

Stitching programs use edge blending tricks to soften the spots where images meet. They do this by mixing pixel colors in overlapping areas. Color balancing keeps everything looking even by tweaking brightness and exposure across all parts, so differences in light don’t mess up the wide final picture.

Synchronization of Exposure and White Balance Across Sensors

Matching brightness levels stops sudden jumps in light across joined views. Sync systems adjust settings like ISO, shutter speed, and gain on the fly across all units. This makes sure each sensor records its area under similar light, leading to a smooth combined output.

Techniques for Eliminating Image Distortion

Optical Correction Through Precision Lens Engineering

Common issues with wide-angle lenses include bulging or pinching effects in images. High-quality lens design tackles these by using special shaped elements that straighten out light paths before hitting the sensor.

Top-tier multi-sensor cameras use carefully paired lenses with strict standards to keep shapes consistent across views. This is crucial for accurate seamless stitching without odd bends or twists near the edges.

Digital Correction via In-Camera Processing

Even with top-notch lenses, some small distortions can linger. Luckily, these can be fixed with digital adjustments built right into the camera’s software.

Barrel, Pincushion, and Perspective Distortion Compensation

Built-in camera systems use specific formulas to undo known distortion shapes based on lens types. Angle adjustments also fix issues when cameras are tilted compared to what they’re filming. This keeps straight lines looking proper and natural across the whole wide stitched view.

Uniview’s Implementation of Advanced Stitching Technology

Uniview’s focus on new ideas has made it one of the top four leaders worldwide in smart video surveillance tools. Uniview has reached over 200 countries and regions. With more than half its team working on research and development, and 10% of yearly earnings poured into fresh ideas, Uniview sees R&D as the heart of every win and never stops pushing forward.

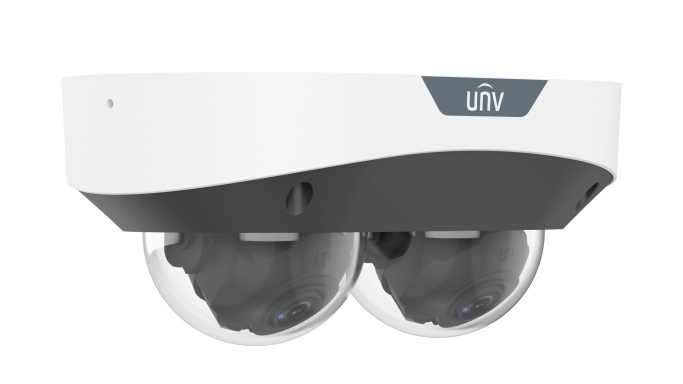

This camera shows how separate dual-sensor units can deliver amazing clarity while making setup much easier. Each unit has a 1/3” CMOS sensor grabbing 4MP resolution at up to 30 fps. The dual-channel setup runs on a single IP address, cutting down on network hassle during setup. Both channels handle smart boundary protection, like spotting line crossings or crowd levels. With 130 dB true WDR tech, it ensures clear visuals even in harsh light, balancing exposure no matter the challenge.

Thanks to LightHunter technology, this model shines in dim settings without losing sharpness. It captures vivid details even when light is low, making every scene stand out.

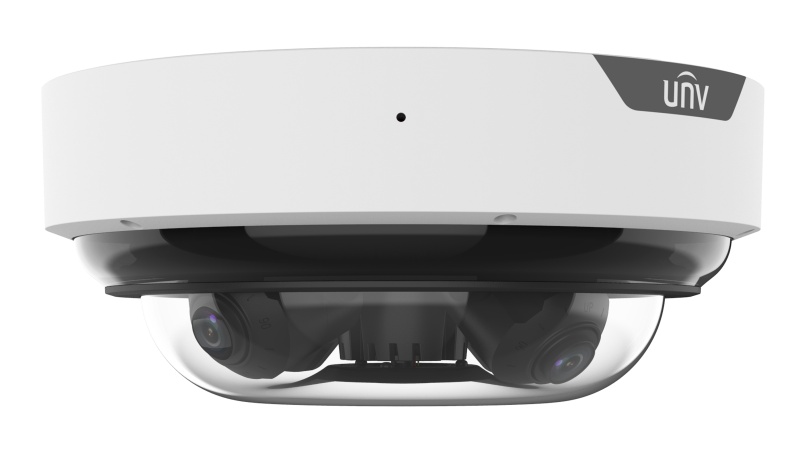

For bigger projects needing high-detail wide coverage, this four-way dome camera offers a complete package with four 5MP sensors merged into one smooth feed. Its onboard stitching system handles input from all sides at once, giving real-time wide surveillance without delays. MultiView products blend different angles in one device.

Starlight imaging boosts visibility at night by a huge margin. Clear images are vital in every security setup. This makes it perfect for outdoor spots like public plazas or transit centers where round-the-clock sharpness is a must. Monitor large areas from different angles, with just one camera.

Advantages of Uniview’s Multi-Sensor Solutions in Real-World Applications

Multi-sensor wide-view cameras bring real-world perks beyond just tech specs:

Wide-Area Surveillance Without Blind Spots

By watching multiple directions at once with fixed-angle sensors, panoramic cameras can provide a broader field of view. These systems get rid of gaps that come with rotating PTZ models. This eliminates blind spots and cuts the need for extra cameras.

Reduced Camera Count and Lower Installation Costs

With \single IP, multiple channels,\ MultiView products only take up one IP address. This simplifies your network setup while cutting down on gear needs. Instead of setting up several single-lens cameras, reduce installation costs by combining viewing power into one unit.

Consistent Image Quality Across Varying Light Conditions

Features like true WDR (130 dB) paired with advanced processing ensure even visuals no matter the shadows or bright backlighting. This tech keeps images clear even in tough lighting scenes.

Uniview’s Commitment to Product Reliability and Service Excellence

Picking Uniview means more than just getting high-end gear—it means tapping into a system centered on trust and support. Uniview offers expert services like pre-sale advice, after-sales help, demo trials, training, and repair options.

Professional Technical Support and Integration Assistance

From early planning to post-setup care, skilled teams guide integrators with custom setup tips for tricky projects. They provide the best solution based on what end users need.

Firmware Updates and Long-Term Maintenance Services

Regular software updates keep gear in line with new standards and add fresh features over time—safeguarding your purchase long after the first setup. Uniview offers ongoing firmware and software upgrades during the warranty period.

Global Partner Network for Scalable Deployment

With a local presence in over 70 countries, Uniview achieved localization in over 70 countries. Large project rollouts are doable even on tight schedules. They have 21 overseas branch offices and over 20,000 global partners.

FAQ

Q: How does seamless stitching improve surveillance quality?

A: Seamless stitching makes video from multiple sensors look like one solid image without odd breaks or mismatches. This gives nonstop awareness, which is key for security tasks.

Q: Can multi-sensor cameras reduce total system costs?

A: Yes, indeed. By merging several views into one unit with a single IP link, these setups cut down on device numbers, wiring, network strain—and slash setup costs by a lot.

Q: What makes LightHunter technology effective at night?

A: It pairs super-sensitive CMOS sensors with wide-opening lenses (like F1.6) to grab clear details even in faint light—offering full-color visuals where regular IR falls short.
