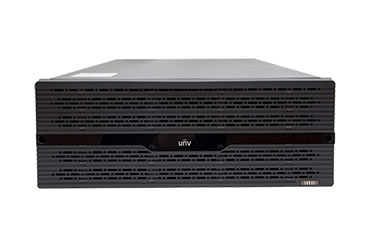

DE1848—Zhejiang Uniview Technologies Co., Ltd.

Disk Enclosure


Disk Enclosure

* high performance

12Gbps SAS-3 technology provides superior performance experience

* High density

The innovative enclosure with 801mm depth and4U height that holds up to 48 disks, is space-saving .

* Redundant power supplies

The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.

* Power protection

Disk powered on sequentially during system startup, protection from impulse current.

* Multistage fan speed and energy saving

Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.

Management Interface2 Serial port
Back-end Expansion Interface6-port 4*12 Gbps Mini SAS HD
HDD48 SATA Interfaces
Disk Capacity1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB,8TB
(W x D x H)
481.6mm X801mm X178mm
Note:for standard cabinet with 1000mm depth or above
Power Consumption580W (fully loaded)
Power Supply100V – 127V/200V – 240V AC;60Hz/50Hz
WeightFully loaded:< 56kg
Authentication certificateCE, FCC, TUV, UL, CCC
Operating temperature5°C ~ 40°C / 41°F ~ 104°F
Recommended temperature10 °C~ 35 °C / 50°F ~ 95°F
Humidity20%~80% RH (non-condensing)
