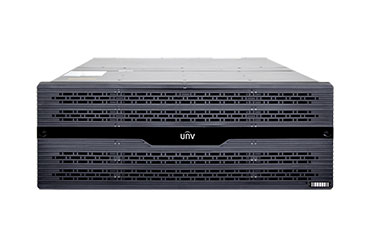

DE1824
Disk Enclosure

DE1824

Disk Enclosure

* high performance

12Gbps SAS-3 technology provides superior performance experience

* High density

The innovative enclosure with 589mm depth and4U height that holds up to 24 disks, is space-saving and applicable to the standard rack-mounted scenarios.

* Redundant power supplies

The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.

* Power protection

Disk powered on sequentially during system startup, protection from impulse current.

* Multistage fan speed and energy saving

Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.

ItemDE1824
Controller1
Management Interface1 Serial port
Back-end Expansion Interface3x48 Gbps Mini SAS HD
HDD24 SATA Interfaces
Disk Capacity1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB,8TB
Dimension (W x D x H)482.0 × 589.0 × 175.0 mm (19.0” × 23.2” × 6.9”)
Note:for standard cabinet with 800mm depth or above
Power Consumption350W (fully loaded)
Power Supply100V – 127V/200V – 240V AC;60Hz/50Hz
WeightWithout HDD:< 19.5 kg; Fully loaded:< 42 kg
Authentication certificateCE, FCC, TUV, UL, CCC
Operating temperature5°C ~ 40°C / 41°F ~ 104°F
Recommended temperature10 °C~ 35 °C / 50°F ~ 95°F
Humidity20%~80% RH (non-condensing)
