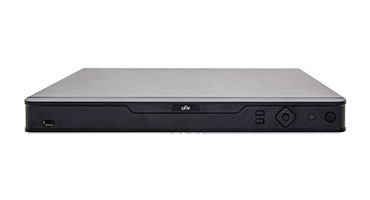

NVR304-16E/32E-B
16/32 Channel 4 HDDs 4K NVR

NVR304-16E/32E-B

16/32 Channel 4 HDDs 4K NVR

Support Ultra 265/H.265/H.264 video formats

16/32-channel input

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution

HDMI1/VGA and HDMI2 independent outputs provided

Up to 12 Megapixels resolution recording

4 SATA HDDs, Up to 8TB for each HDD

Various fisheye dewarping modes for live view and playback for both web interface and GUI

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

ModelNVR304-16E-BNVR304-32E-B
Video/Audio Input
IP Video Input16-ch32-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth160Mbps320Mbps
Outgoing Bandwidth320Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI1/VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback16-ch
Corridor Mode Screen3/4/5/7/9/10/12/163/4/5/7/9/10/12/16/32
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25
Hard Disk
SATA4 SATA interfaces
Capacityup to 8TB for each HDD
Smart
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
External Interface
Network Interface2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface1 x RS485
USB InterfaceFront panel: 1 x USB2.0
Rear panel: 1 x USB2.0, 1 x USB3.0
Alarm In16-ch
Alarm Out4-ch
General
Power Supply12V DC Power Consumption: ≤ 12W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)440mm × 344mm× 44mm (17.3" × 13.5"×1.7" )
Weight ( without HDD )≤ 3.14 Kg ( 6.92 lb )
