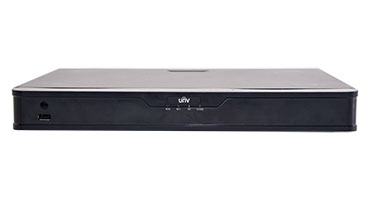

NVR302-E-P-B Series
8/16-ch 2-SATA NVR

NVR302-E-P-B Series

8/16-ch 2-SATA NVR

Support Ultra 265/H.265/H.264 video formats

8/16-channel input

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

HDMI and VGA simultaneous output

Up to 12 Megapixels resolution recording

2 SATA HDDs, up to 8TB for each HDD

Support redundant recording

Various fisheye dewarping modes for live view and playback for both web interface and GUI

Plug & Play with up to 8/16 independent PoE network interfaces

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

ModelNVR302-08E-P8-BNVR302-16E-P8-BNVR302-16E-P16-B
Video/Audio Input
IP Video Input8-ch16-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth80Mbps160Mbps
Outgoing Bandwidth160Mbps320Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputVGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback8-ch16-ch
Corridor Mode Screen3/4/5/7/93/4/5/7/9/10/12/16
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
Hard Disk
SATA2 SATA interfaces
Capacityup to 8TB for each disk
RedundancyRedundant recording
Smart
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
External Interface
Network Interface1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB InterfaceFront panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In4-ch
Alarm Out1-ch
PoE
Interface8 independent 100 Mbps PoE network interfaces16 independent 100 Mbps PoE network interfaces
Max PowerMax 30W for single port
Max 130W in total ( 16.25W for each )
Max 30W for single port
Max 240W in total ( 15W for each )
Supported StandardIEEE 802.3af/at
General
Power Supply 100 ~ 240 V AC Power Consumption: ≤ 20 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)380 mm × 315mm × 46 mm(15" × 12.4"×1.8")
Weight ( without HDD )≤2.42kg(5.34lb)≤2.48kg(5.47lb)
