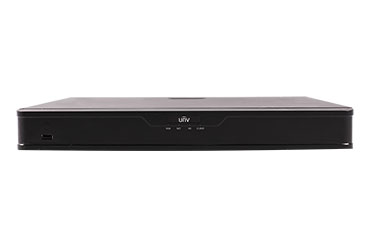

NVR302-08S
8 Channel 2 HDD NVR

NVR302-08S

8 Channel 2 HDD NVR

Support Ultra 265/H.265/H.264 video formats

8-channel input

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

HDMI and VGA simultaneous output

Up to 8 Megapixels resolution recording

2 SATA HDDs, up to 8TB for each HDD

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

 NVR302-08S
Video/Audio Input
IP Video Input8-ch
Two-way Audio Input1-ch, RCA
Network
Incoming bandwidth48Mbps
Outgoing bandwidth48Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Audio Output1-ch, RCA
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback8-ch
Corridor Mode Screen3/4/5/7/9
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA2 SATA interface
Capacityup to 8TB for each disk
Smart
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
External Interface
Network Interface1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel:2 x USB2.0, Front panel:1 x USB2.0
Alarm In4-ch
Alarm Out1-ch
General
Power Supply12V DC Power Consumption: ≤ 5 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)380mm × 315mm × 46mm (15.0"× 12.4" ×1.8")
Weight ( without HDD )≤ 2.18 Kg (4.81 lb )
