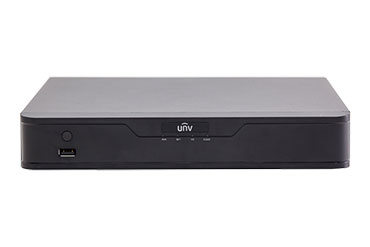

NVR301-S Series
4/8 Channel 1 HDD NVR

NVR301-S Series

4/8 Channel 1 HDD NVR

Support Ultra 265/H.265/H.264 video formats

4/8-channel input

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

HDMI and VGA simultaneous output

Up to 8 Megapixels resolution recording

1 SATA HDDs, up to 8TB for each HDD

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

 NVR301-04SNVR301-08S
Video/Audio Input
IP Video Input4-ch8-ch
Network
Incoming bandwidth40Mbps48Mbps
Outgoing bandwidth48Mbps48Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Audio Output1-ch, RCA
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback4-ch8-ch
Corridor Mode Screen3/43/4/5/7/9
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA1 SATA interface
Capacityup to 8TB for each disk
Smart
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
External Interface
Network Interface1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel:1 x USB2.0, Front panel:1 x USB2.0
General
Power Supply12V DC Power Consumption: ≤ 5 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)260.0mm × 240.2mm ×43.6mm (10.2"× 9.5"×1.7")
Weight ( without HDD )≤ 1 Kg (2.2 lb )
