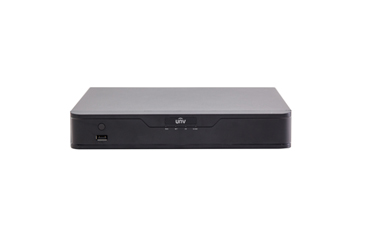

NVR301-P Series
4/8/16 Channel 1 HDD NVR

NVR301-P Series

4/8/16 Channel 1 HDD NVR

Support Ultra 265/H.265/H.264 video formats

4/8/16-channel input

Plug & Play with 4/8 independent PoE network interfaces

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

HDMI and VGA simultaneous output

Up to 8 Megapixels resolution recording

1 SATA HDD up to 8 TB

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

ModelNVR301-04-P4NVR301-08-P8NVR301-16-P8
Video/Audio Input
IP Video Input4-ch8-ch16-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth40Mbps60Mbps60Mbps
Outgoing Bandwidth64Mbps64Mbps80Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback4-ch8-ch16-ch
Corridor Mode Screen3/43/4/5/7/93/4/5/7/9/10/12/16
Decoding
Decoding formatUltra 265, H.265, H.264
Live view /Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1
Hard Disk
SATA1 SATA interface
Capacityup to 8TB for each disk
Smart
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
External Interface
Network Interface1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel:2 x USB2.0, Front panel:1 x USB2.0
Alarm In4-ch
Alarm Out1-ch
PoE
Interface4 independent 100 Mbps PoEnetwork interfaces8 independent 100 Mbps PoEnetwork interfaces
Max PowerMax 30W for single port
Max 54W in total ( 13.5W for each )
Max 30W for single port
Max 108W in total ( 13.5W for each )
Supported StandardIEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC Power Consumption: ≤ 5 W( without HDD )52V DC Power Consumption: ≤ 5 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)260mm ×240mm × 44mm  (10.2" ×9.4" ×1.7")
Weight ( without HDD )≤ 1.12 Kg ( 2.47 lb )
