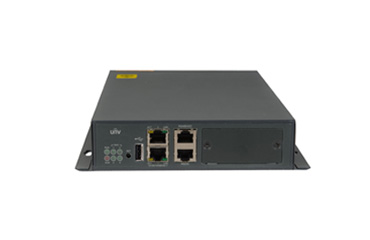

DVS4104
4 channel 960H Encoder

DVS4104

4 channel 960H Encoder

* 4 channel video and audio inputs

* H.264 video compression

* Full channel 960H realtime encoding

* Dual-stream

 DVS4104
Video
Video Input4-ch, BNC
Video StandardH.264
Video bit rate960H/D1: 512 Kbit/s - 8192 Kbit/s;
2CIF: 256 Kbit/s - 4096 Kbit/s;
CIF: 128 Kbit/s - 1024 Kbit/s
Video stream1)H.264 single stream;
2) H.264 + H.264 dual streams
Audio
Input4-ch
Output1-ch
Audio StandardG.711μ
Sound trackMono
MuteSupport
External Interface
Network Interface2 RJ-45 10M/100M adaptive Ethernet Interface
USB Interface1 USB2.0 interfaces
Serial Interface1 RS-232, 2 RS-485
Alarm Input4-ch
Alarm Output2-ch
General
Power Supply12V DC
Consumption≤10 W (with subcard )
Working Temperature-10°C ~ + 60°C ( +14°F ~ +140°F )
Working Humidity10% ~ 90%
Weight≤ 1.5 Kg ( 3.3 lb )
Dimensions40 x 250 x 189mm ( 1.6" x 9.8" x 7.4" )
