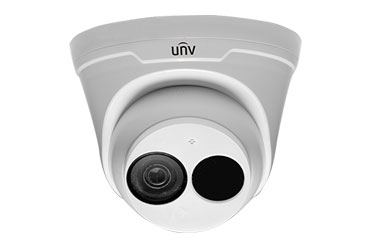

IPC3614LR3-PF28(40)
4MP Fixed Dome Network Camera

IPC3614LR3-PF28(40)

4MP Fixed Dome Network Camera

Optics

* Day/night functionality

* SmartIR, up to 30 m (98 ft) IR distance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Triple streams

* 9:16 corridor format

Network

* ONVIF Conformance

Structure

* Wide temperature range: -20°C to 50°C (-4°F to 122°F)

* Wide voltage range of ±25%

 IPC3614LR3-PF28IPC3614LR3-PF40
Camera
Sensor1/3", progressive scan,4megapixel, CMOS
Lens2.8mm@F1.83.6mm@F1.8
Angle of view(H)101.8°73.7°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52 dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDRDWDR
AWB(Auto white balance)Auto/manual
Gain ControlAuto/manual
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:4MP (2592×1520): Max. 20 fps, 4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible IntegrationONVIF(Profile S), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.0W
Dimensions (Ø x H)Φ118 x 96 mm (Ø4.6” x 3.8”)
Weight0.2 kg (0.44lb)
Operating Conditions-20C ~ +50°C (-4°F ~ 122°F), Humidity :10%~95% RH(non-condensing)
