IPC2222SR5-UPF40(60)-B

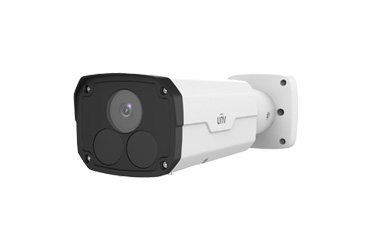

2MP Starlight Fixed Bullet Network Camera

IPC2222SR5-UPF40(60)-B

2MP Starlight Fixed Bullet Network Camera

Optics

* Starlight illumination

* Day/night functionality

* Smart IR , up to 50 m (164 ft) IR distance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor format

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC2222SR5-UPF40-BIPC2222SR5-UPF60-B
Camera
Sensor1/2.9", progressive scan,2.0 megapixel, CMOS
Lens4.0mm@F1.66.0mm@F1.6
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
4mm64.325.712.96.4
6mm96.438.619.39.6
Angle of View(H)82.0°52.1°
Angle of View (V)41.428.3
Angle of View (O)100.964.1
AdjustmentanglePan: 0°~360°Tilt:0°~90°Rotate:0°~360°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.003 Lux (F1.6, AGC ON)
0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 50m (164ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra265, H.265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps
9:16 Corridor ModeSupported
ROISupported
HLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection、Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SSL, TLS
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 9 W
Dimensions (L × W × H)253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)
Weight0.58kg (1.28lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP67
