IPC542E-DLC-C

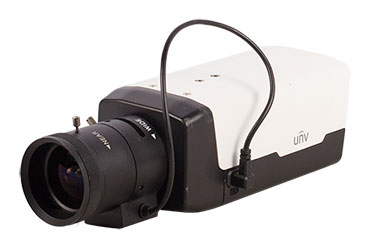

2MP WDR Network Box Camera

IPC542E-DLC-C

2MP WDR Network Box Camera

Optics

* Day/night functionality

* Lowlight surveillance

* 2D/3D DNR (Digital Noise Reduction)

* Up to 120 dB WDR(Wide Dynamic Range)

Compression

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor mode

* Customized OSD

Network

* ONVIF Conformance

Structure

* AC 24V /DC 12 V/PoE power supply

* Wide temperature range: -20°C to 60°C (-4°F to 140°F)

* Wide voltage range of ±10%

* 6 KV surge protection designed for network interface

 IPC542E-DLC-C
Camera
Sensor1/2.9" progressive scan, 2.0 megapixel, CMOS
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.001 Lux (F1.2, AGC ON) B/W:0.0001 Lux(F1.2, AGC ON)
Lens MountC/CS
IrisDC-Iris/P-Iris,DC 5V (4 Pins)
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:2MP (1920×1080): Max. 30 fps; Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Audio I/O3.5 mm audio interface
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O2 / 1
Serial Port1 RS485 (support Pelco-D/P)
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power24 V AC±10%, 12 V DC±10%, PoE (IEEE802.3 af)
Power consumption: Max 6.8W
Dimensions (L × W × H)151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight0.48 kg (1.1 lb)
Working Environment–20°C ~ +60°C (-4°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Reset ButtonSupported
